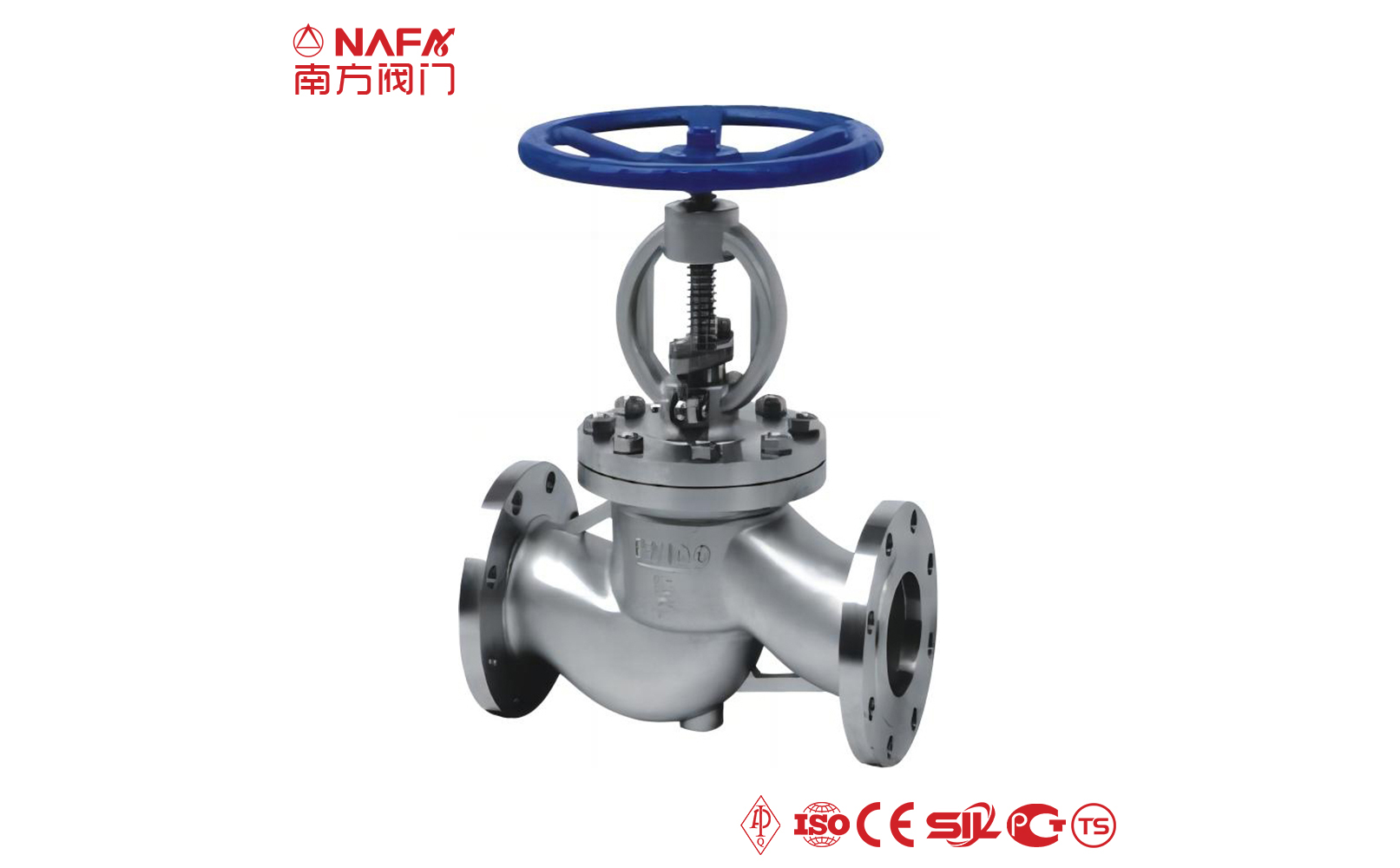

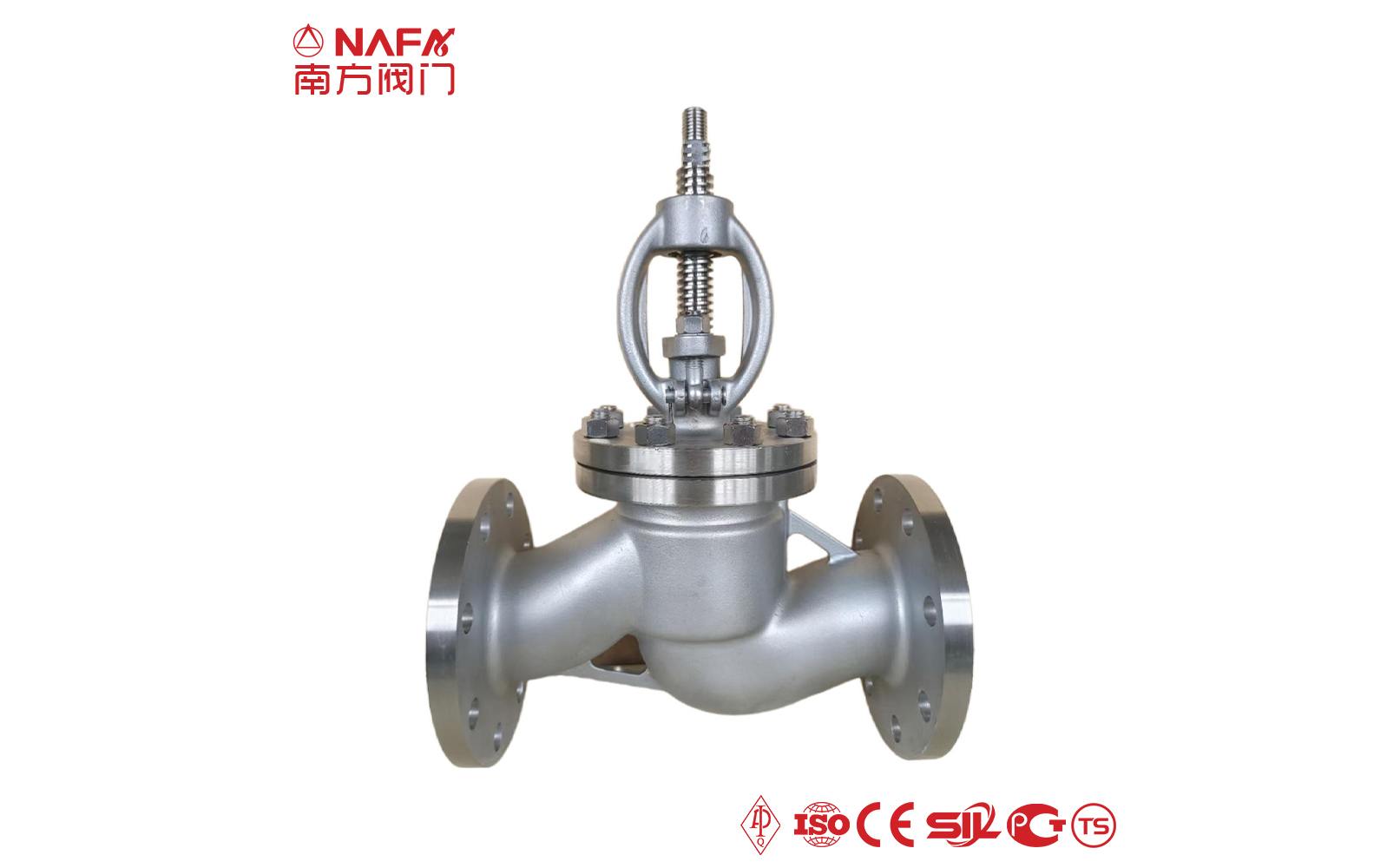

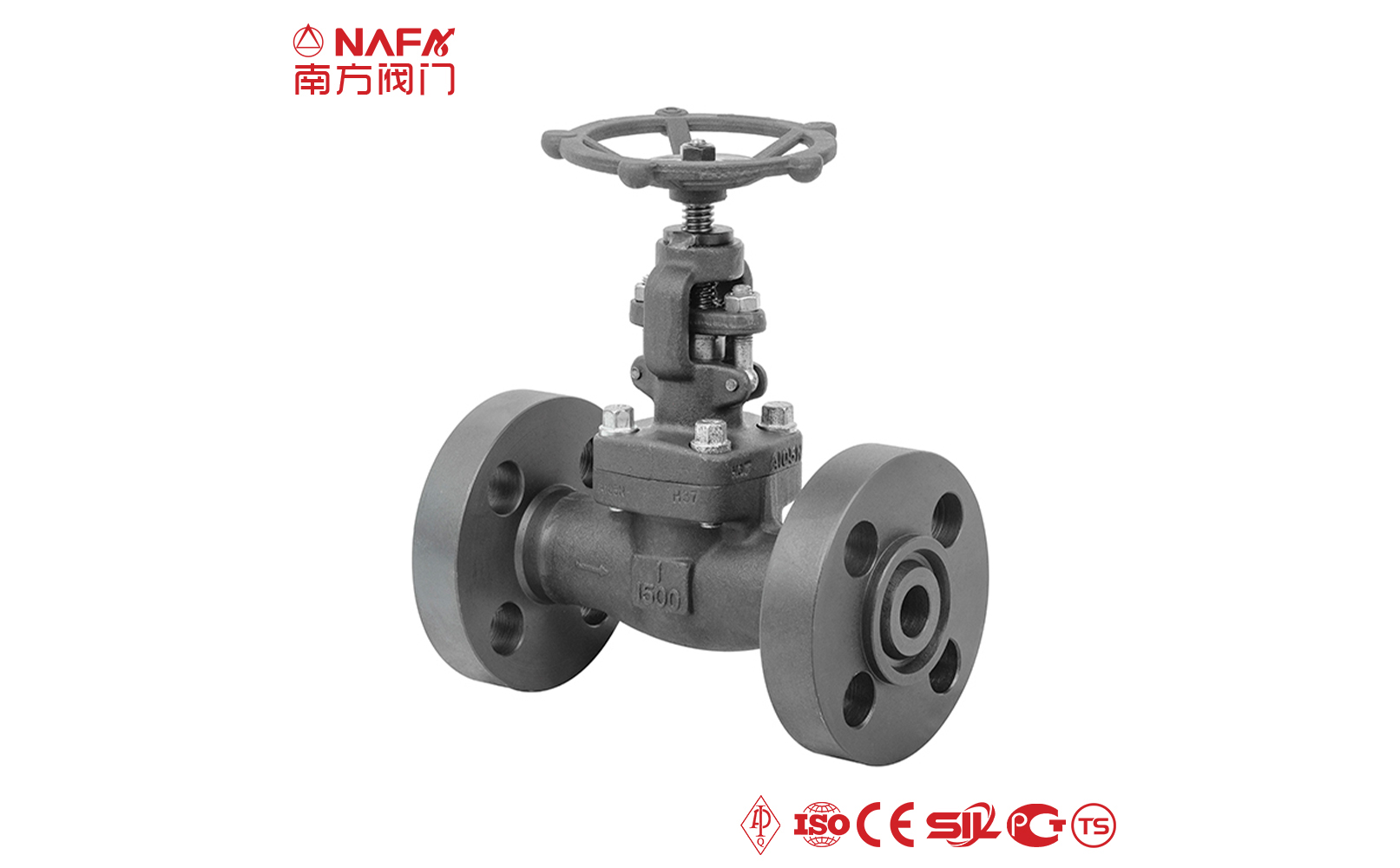

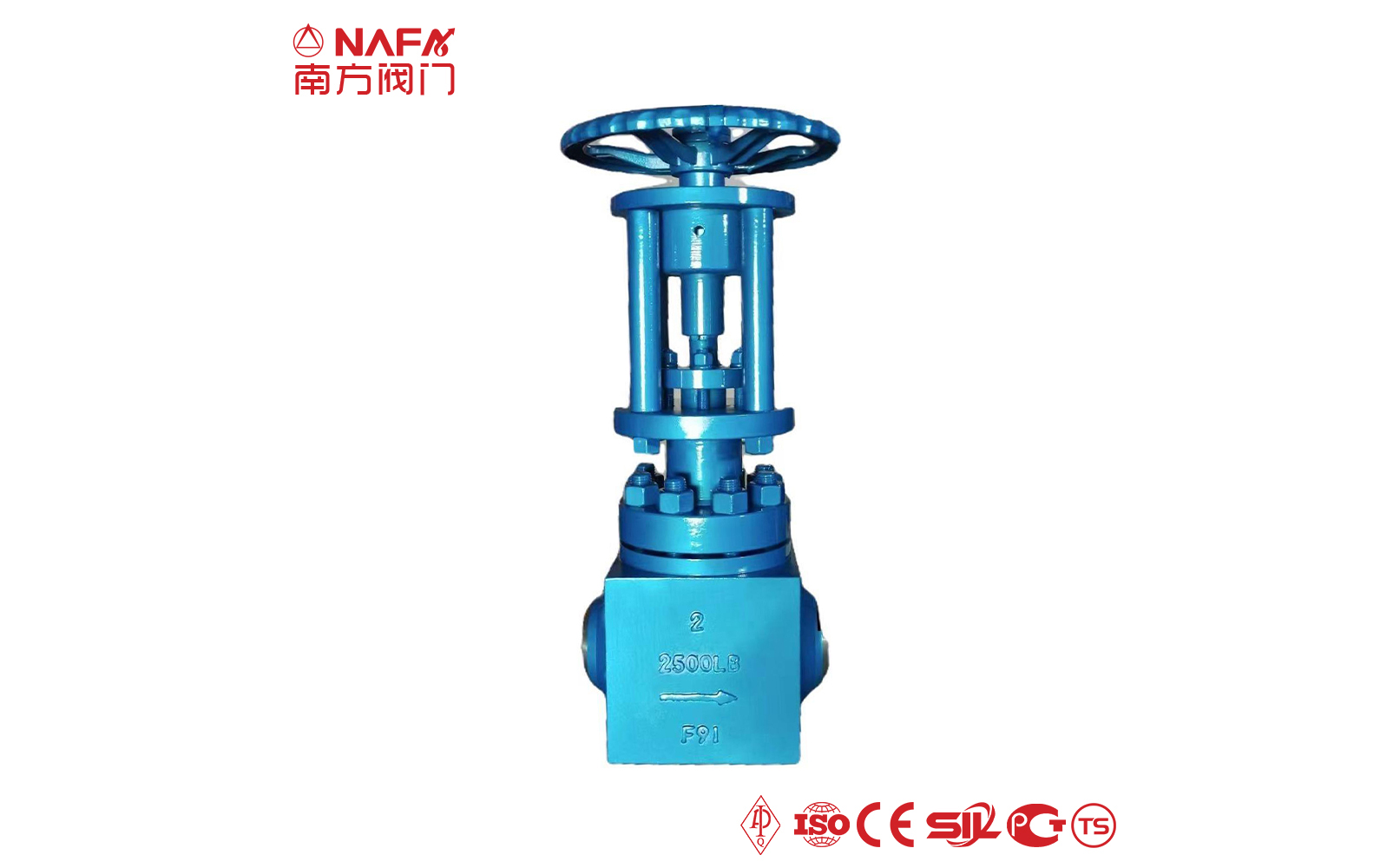

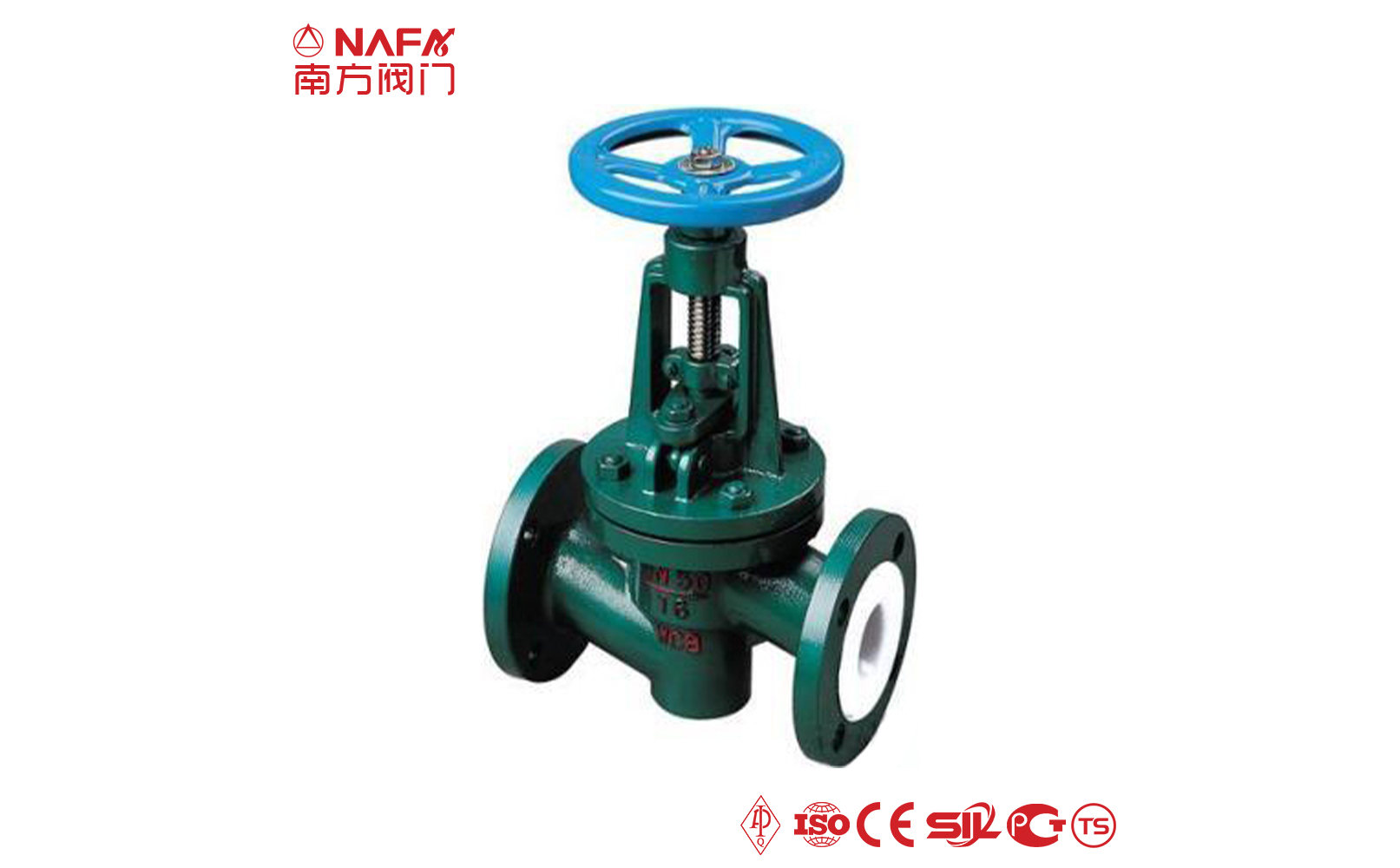

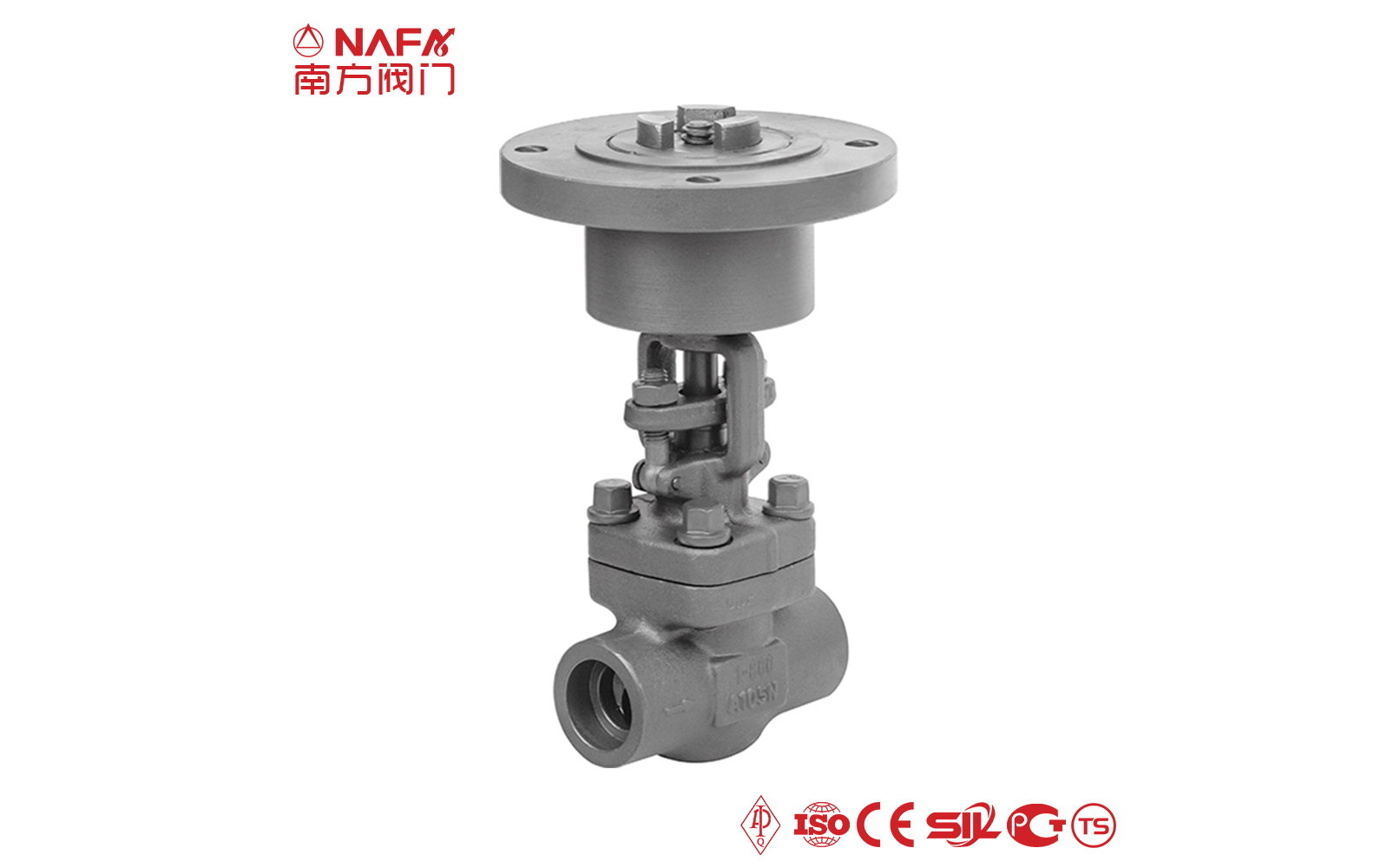

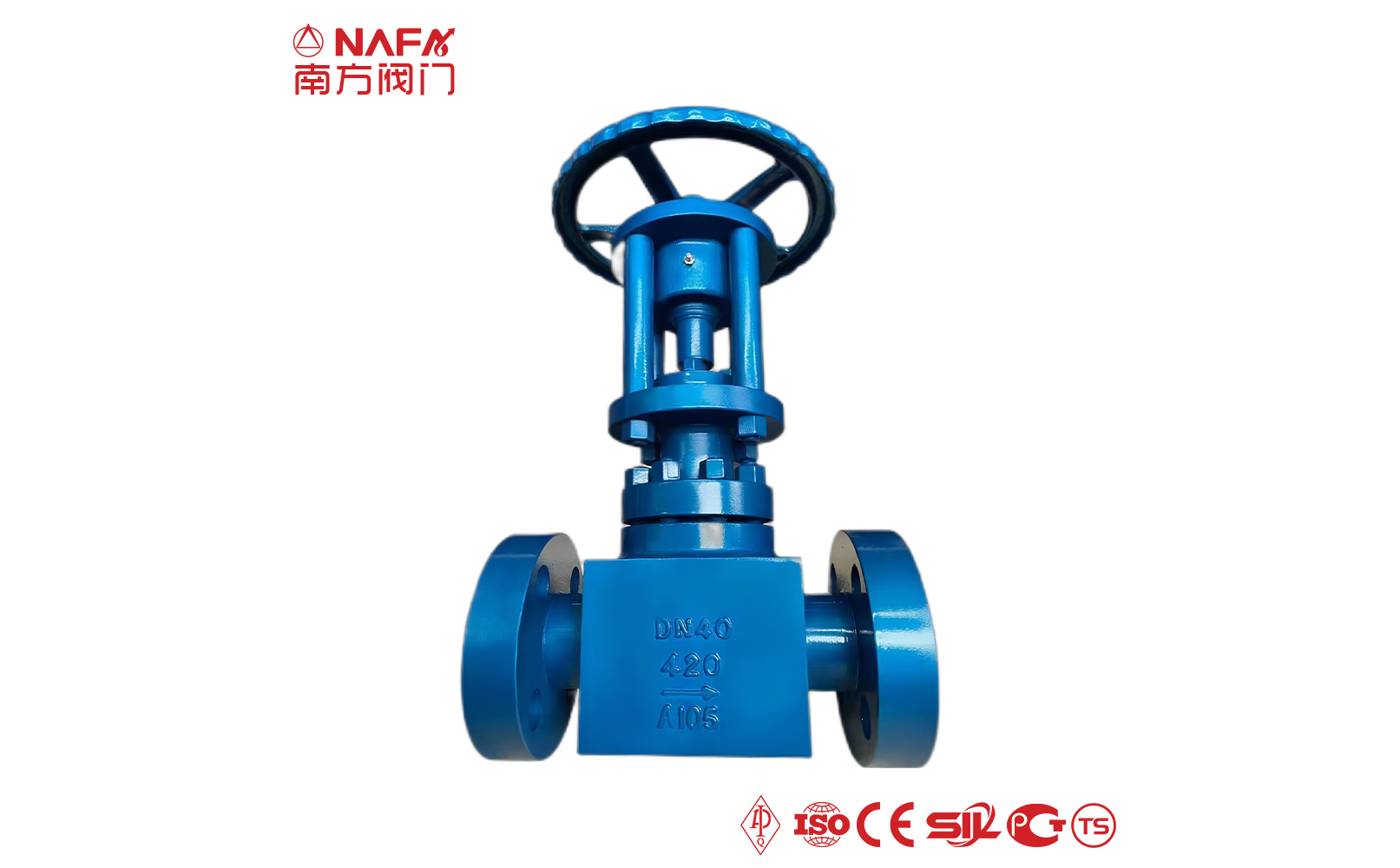

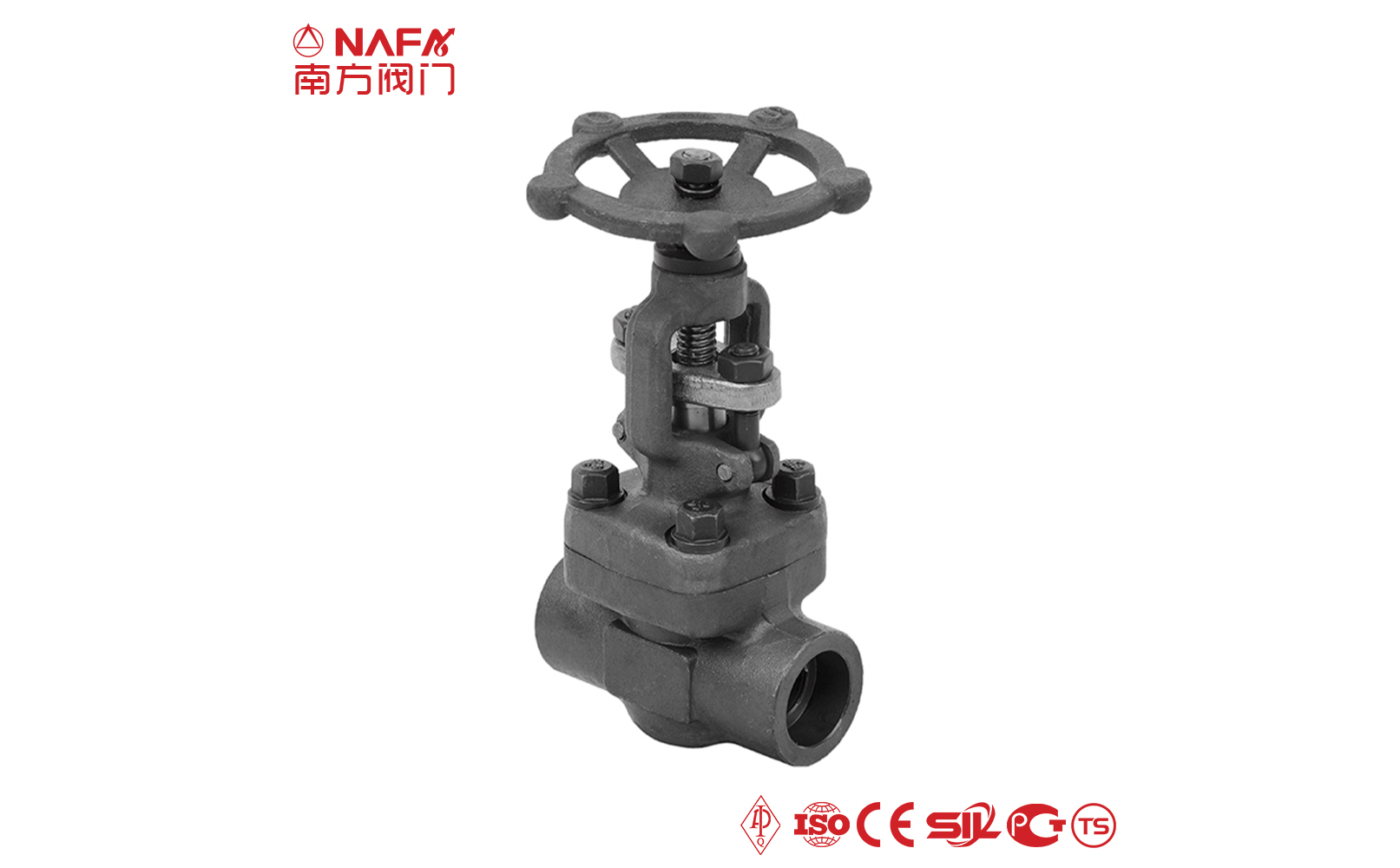

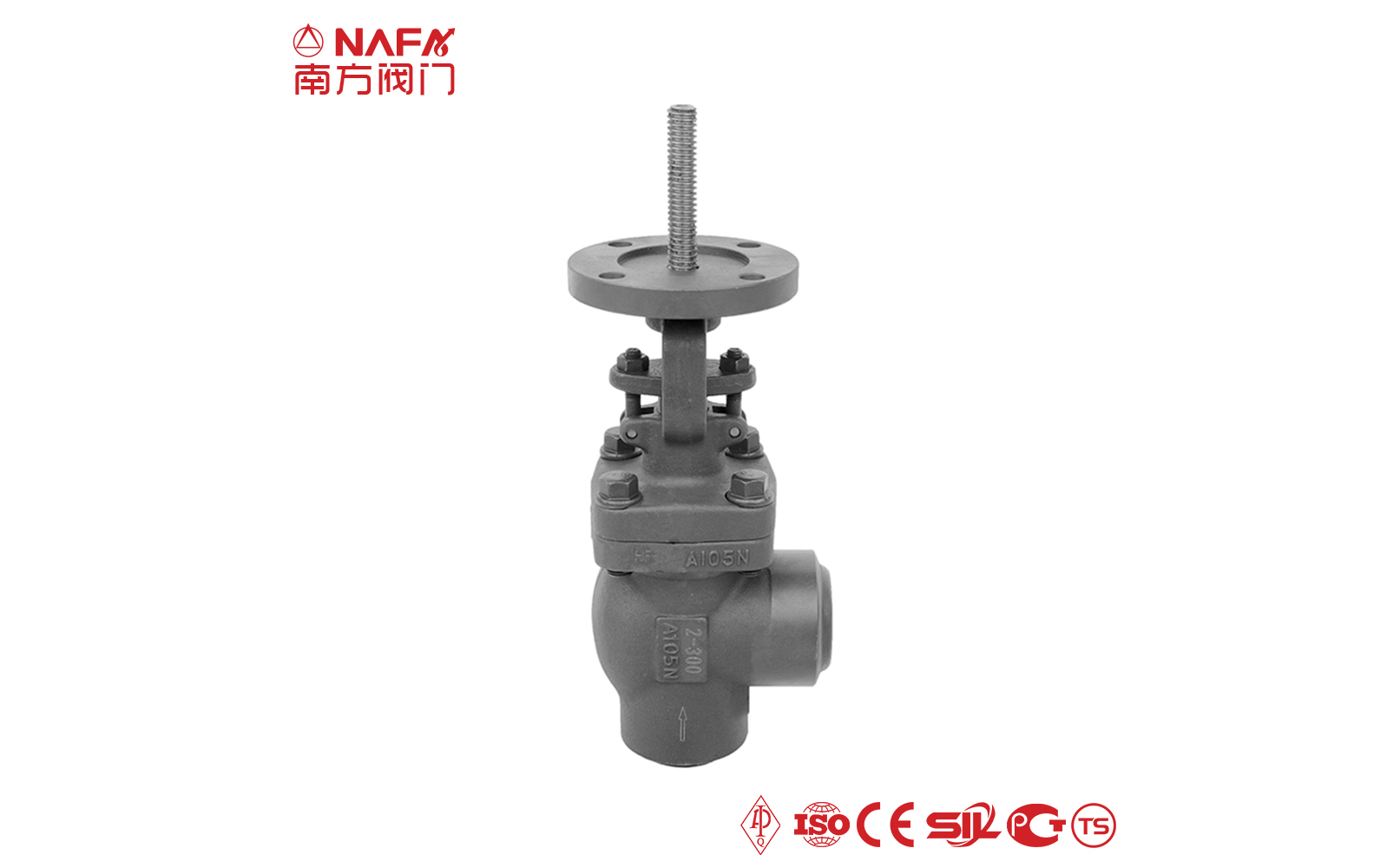

What is Bonnet Bolted Globe Valve ?
The valve body is bolted to the upper valve cover. The disc moves vertically along the center line of the valve seat, and relies on the spinning of the valve stem thread to make the disc sealing surface of the globe valve closely fit with the sealing surface of the valve seat, thus cutting off the medium flow. When the disc of the globe valve is opened, the valve seat and the sealing surface of the valve disc are out of contact, and the mechanical wear of the sealing surface is small, so the globe valve can maintain good sealing performance. The disc switch stroke of the globe valve is small, and the sealing surface can withstand multiple opening and closing, so the globe valve is suitable for occasions where frequent switching is required.
Advantages of bonnet bolted globe valve
- 01It has compact structure, good opening and closing performance, small height, easy maintenance.
- 02It has anti-cavitation effect, wear resistance, corrosion resistance, erosion resistance and long service life.
- 03The sealing surface is hard alloy, not easy to wear and scratch, and has good sealing performance. Long service life.
- 04It is suitable for water, steam and oil pipelines, and has the characteristics of high temperature resistance and high pressure resistance.
- 05The opening and closing part at the bottom of the valve stem is a hemispherical valve disc, and the surface of the valve stem and valve disc is a hard alloy layer.
- 06When the valve is closed, the two sealing surfaces can fit completely, effectively isolating the fluid in the pipeline.
Design Standard
-
API -
ASME -
ANSI -
EN -
DIN -
GOST -
GB -
JIS
Leave Your Contact Details,
Our Team Will Get in Touch With You as Soon as Possible
| The characteristics of bonnet bolted globe valve |
The sealing parts of the bonnet bolted globe valve are the valve disc and the valve seat. In order to make the globe valve close tightly, the matching surface of the valve disc and the valve seat should be ground or gasketed, and the sealing surface can also be inlaid with corrosion-resistant and wear-resistant materials such as bronze and stainless steel. The valve disc and the valve stem of the globe valve are connected flexibly to facilitate the close fit of the valve disc and the valve stem. The lifting and lowering of the valve disc of the globe valve is generally controlled by the valve stem. The upper part of the valve stem of the globe valve is a hand wheel, and the middle part is a thread and packing sealing section. The function of the packing is to prevent the internal medium of the valve body from leaking along the valve stem. When the valve is opened and closed, the valve core will rotate or move along the axis of the valve body to achieve the purpose of controlling the flow of liquid or gas. The upper end of the valve stem is constrained by the packing and the upper sealing seat, and the lower end of the valve stem is connected to the valve disc by a clearance fit. The sealing surface of the lower end of the valve disc fits with the sealing surface of the valve seat to form a seal. |

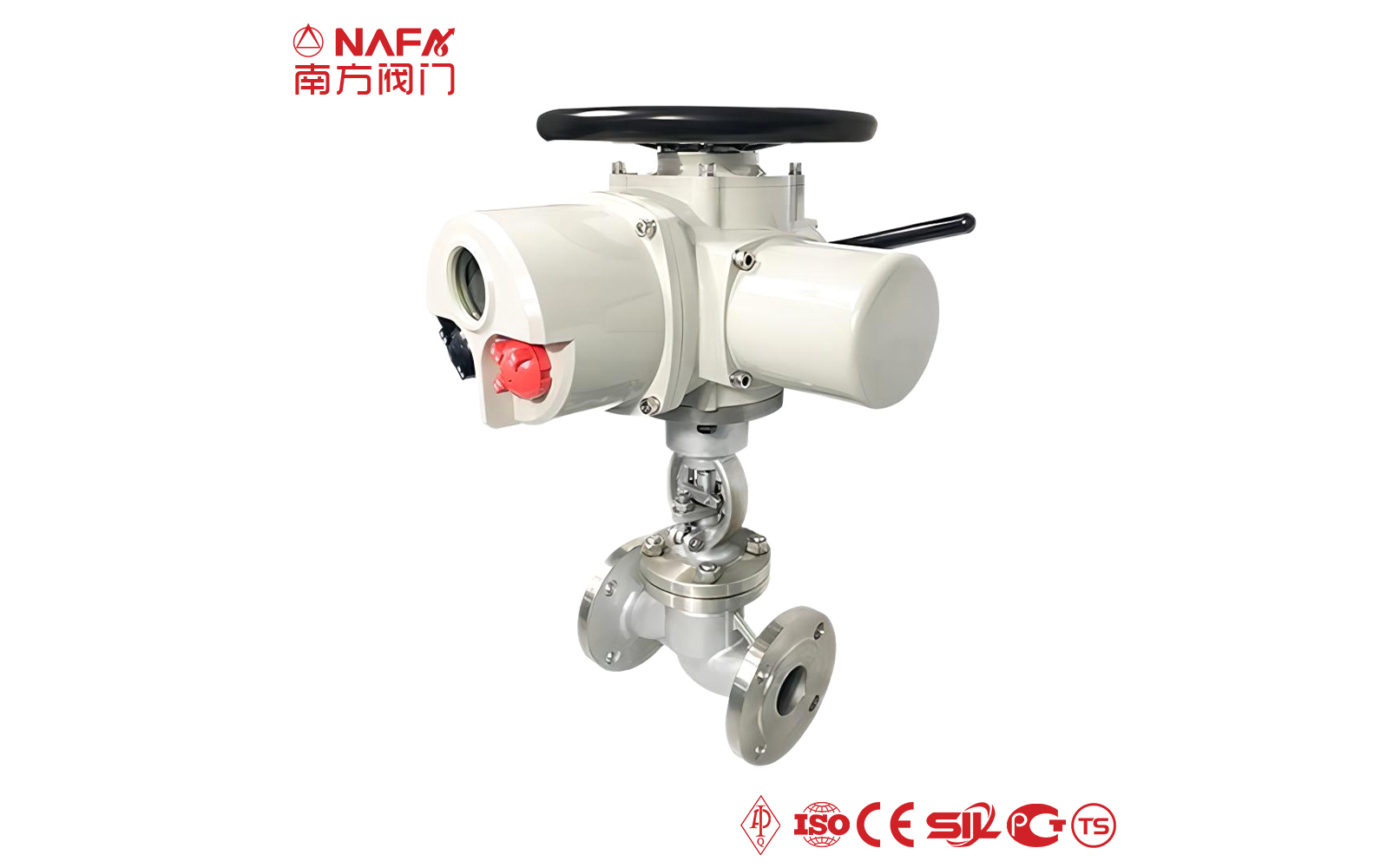

| Technical Parameters | |
| Size | DN15-DN1500, 1/2''-60'' |
| Pressure | PN10-PN420, Class150-Class2500 |
| Temperature | -200°C to 650°C |
| Connection Type | Flange, Thread, Wafer, Welded |
| Operation Mode | Manual, Pneumatic, Electric, Hydraulic, Gear operation |
| Materials | ||
| Valve Body | Forged | A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc |
| Cast | WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc | |
| Valve Stem | F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc | |
| Valve Disc | A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc | |
| Seat Sealing | SS, BR, CU, AS, CS, AL, PTFE, NBR, FKM, AI203, etc | |
| Design Standards | |
| Valve Body | API 6D, API 608, ASME B16.34, DIN 3357, BS 5351, GOST 9833, JIS B2071, GB/T 12237, etc |
| Flange | ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12821, DIN 2543-2545, etc |
| Connection | ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc |
| Test Standards | API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc |
