Home > Industrial Valve > Ball Valves > Three Way Ball Valve

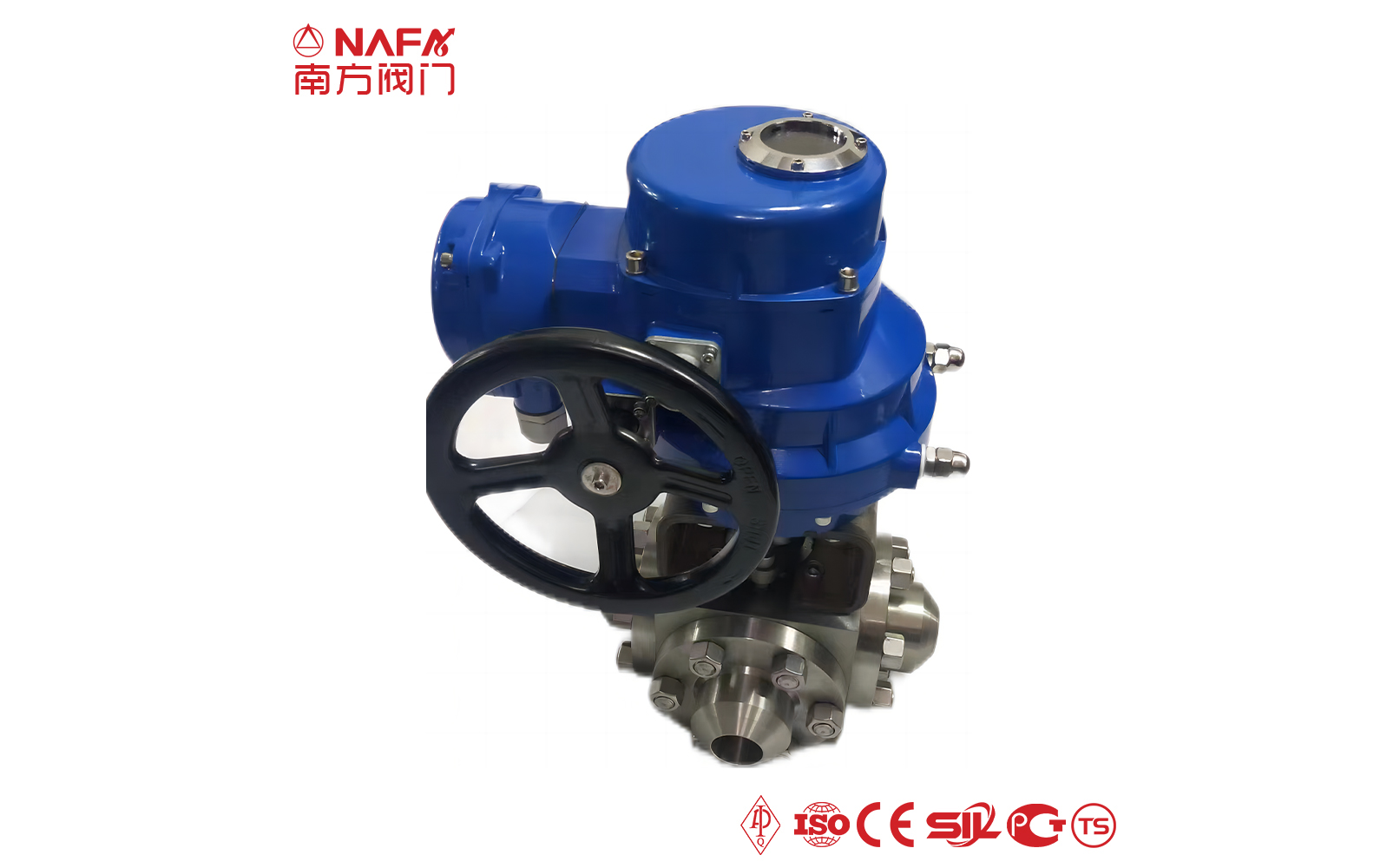

What is Three Way Ball Valve ?
The three-way ball valve is mainly used in pipelines to cut off, distribute and change the flow direction of the medium. The three-way ball valve is a relatively new type of ball valve. It has some advantages unique to its own structure, such as no friction when switching, the seal is not easy to wear, and the opening and closing torque is small. This can reduce the specifications of the actuator. The three-way ball valve has T-type and L-type. The T-type can connect three orthogonal pipelines to each other and cut off the third channel, which plays a role in diversion and confluence. The L-type three-way ball valve can only connect two orthogonal pipelines, and cannot keep the third pipeline connected at the same time, and only plays a distribution role.
Advantages of three-way ball valve
  • 01
    The valve stem adopts a blow-out prevention design.
  • 02
    The conical valve stem seal effectively prevents the leakage of the medium during the rotation of the valve stem, and can also effectively prevent leakage under abnormal pressure increase conditions.
  • 03
    The pre-tightening compression force of the disc spring is released to automatically compensate for the wear of the packing and the valve stem seal.
  • 04
    The platform and handle of the valve are equipped with lock holes, and the valve is locked in the closed position or open position with a padlock.
  • 05
    The backstop fixes the valve stem nut to prevent it from loosening.
  • 06
    The three-way ball valve has a large flow capacity and can control gas, liquid, and steam. It is more suitable for controlling high-viscosity, fibrous and granular fluids.
Design Standard
  • API
  • ASME
  • ANSI
  • EN
  • DIN
  • GOST
  • GB
  • JIS
Leave Your Contact Details,
Our Team Will Get in Touch With You as Soon as Possible
The characteristics of three-way ball valve

The L-shaped flow channel allows the fluid to flow to either of the two outlets. There is a central hole in the valve ball. When it is aligned with a certain inlet/outlet, the fluid can pass through the relevant flow channel. T-shaped three-way ball valve is used for media separation, merging and flow direction switching. It can make three channels communicate with each other or two channels communicate.

The three-way ball valve adopts an integrated structure in structure, a sealing type of four-sided valve seat, less flange connection, high reliability, and a lightweight design.

The three-way ball valve includes a body, a bonnet and a stem. One end of the valve stem of the product is linked to the ball, and the other end passes through the valve body and is linked to the external drive mechanism.

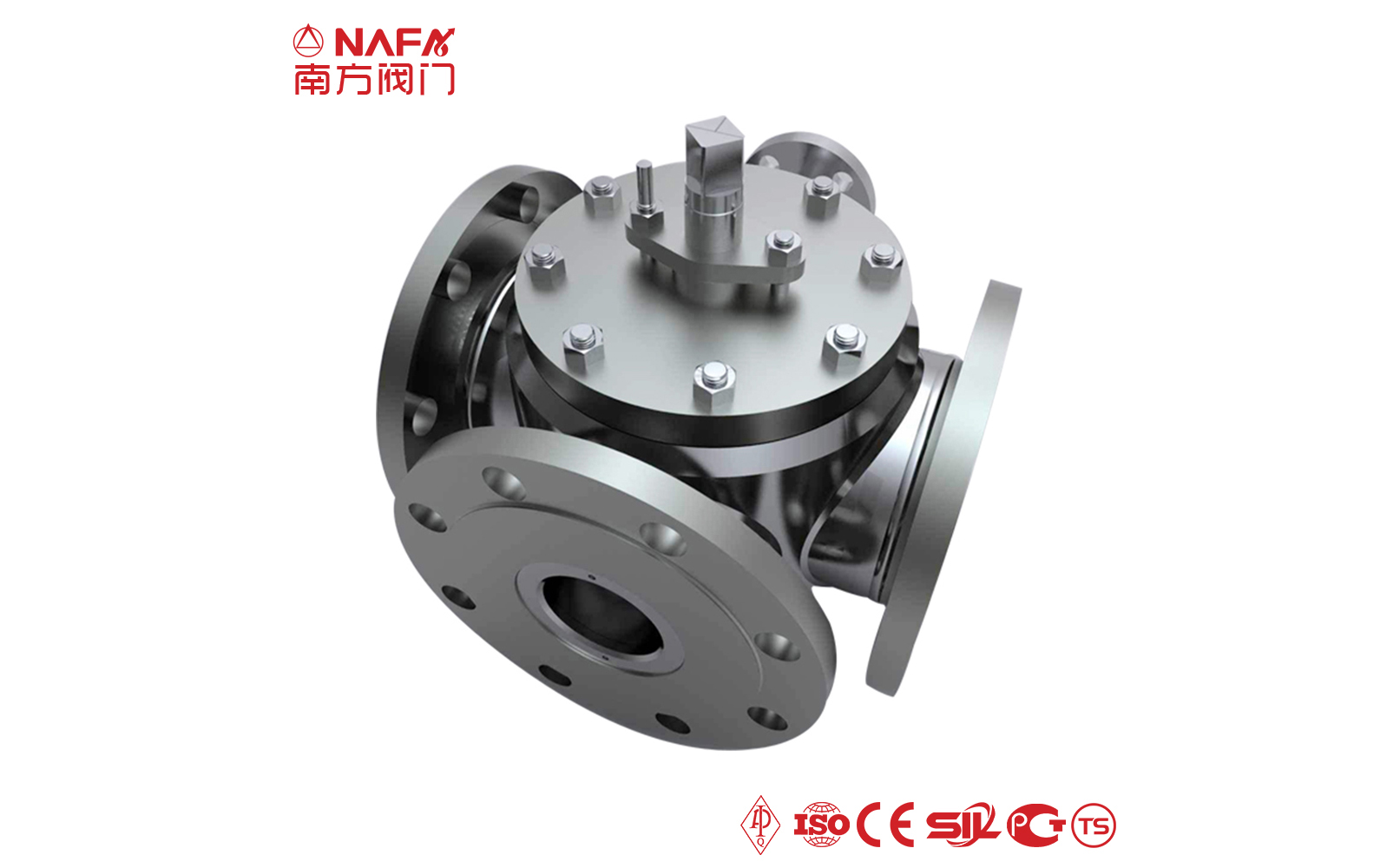

The valve bonnet is fully installed. In addition to the valve body, the valve cover, bottom cover and side cover are all assembled with bolts, which can be easily converted into a four-way or five-way ball valve, and is easy to install, disassemble and repair.


Technical Parameters
SizeDN15-DN1500, 1/2''-60''
PressurePN10-PN420, Class150-Class2500
Temperature-200°C to 650°C
Connection TypeFlange, Thread, Socket weld, Butt weld

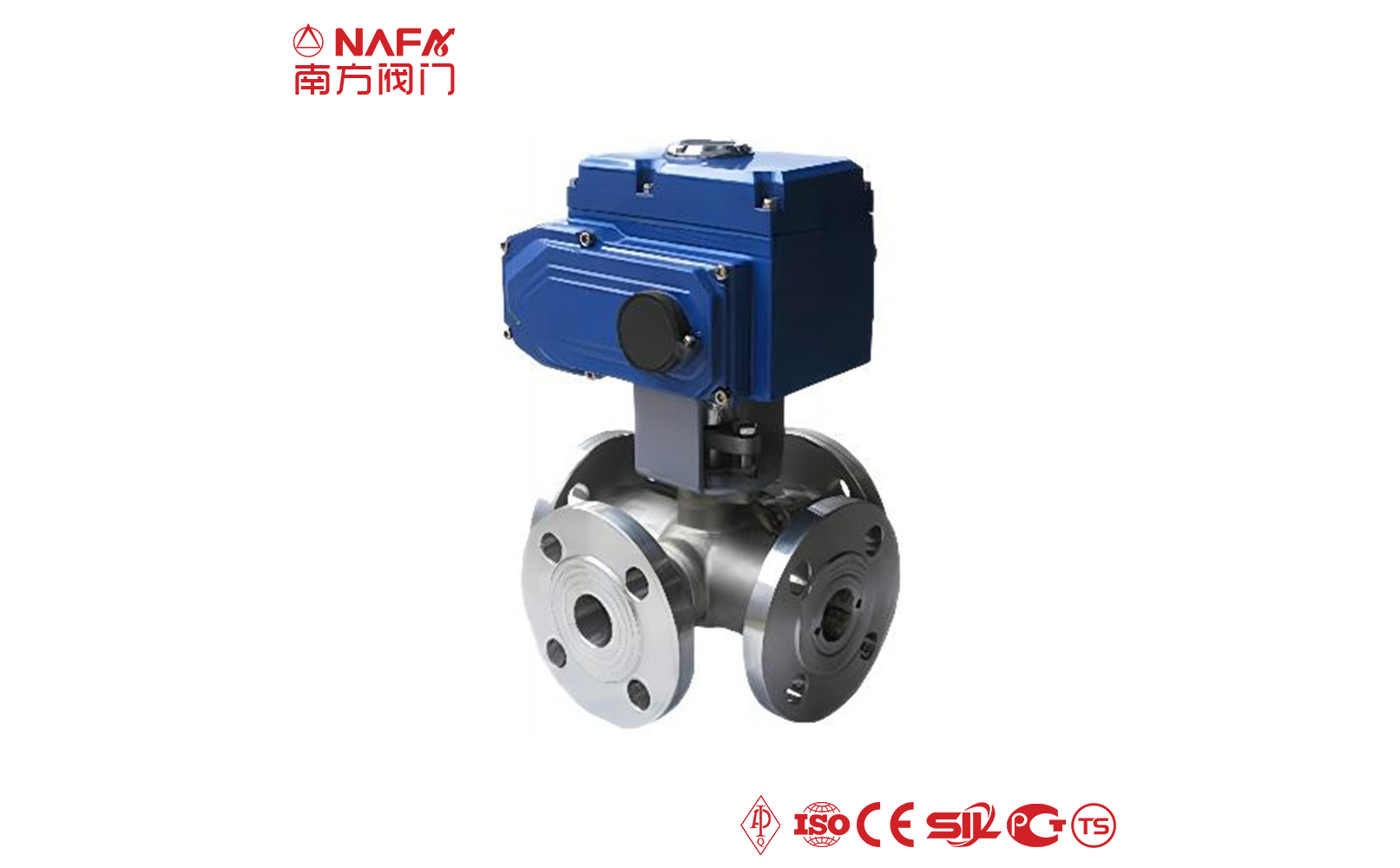

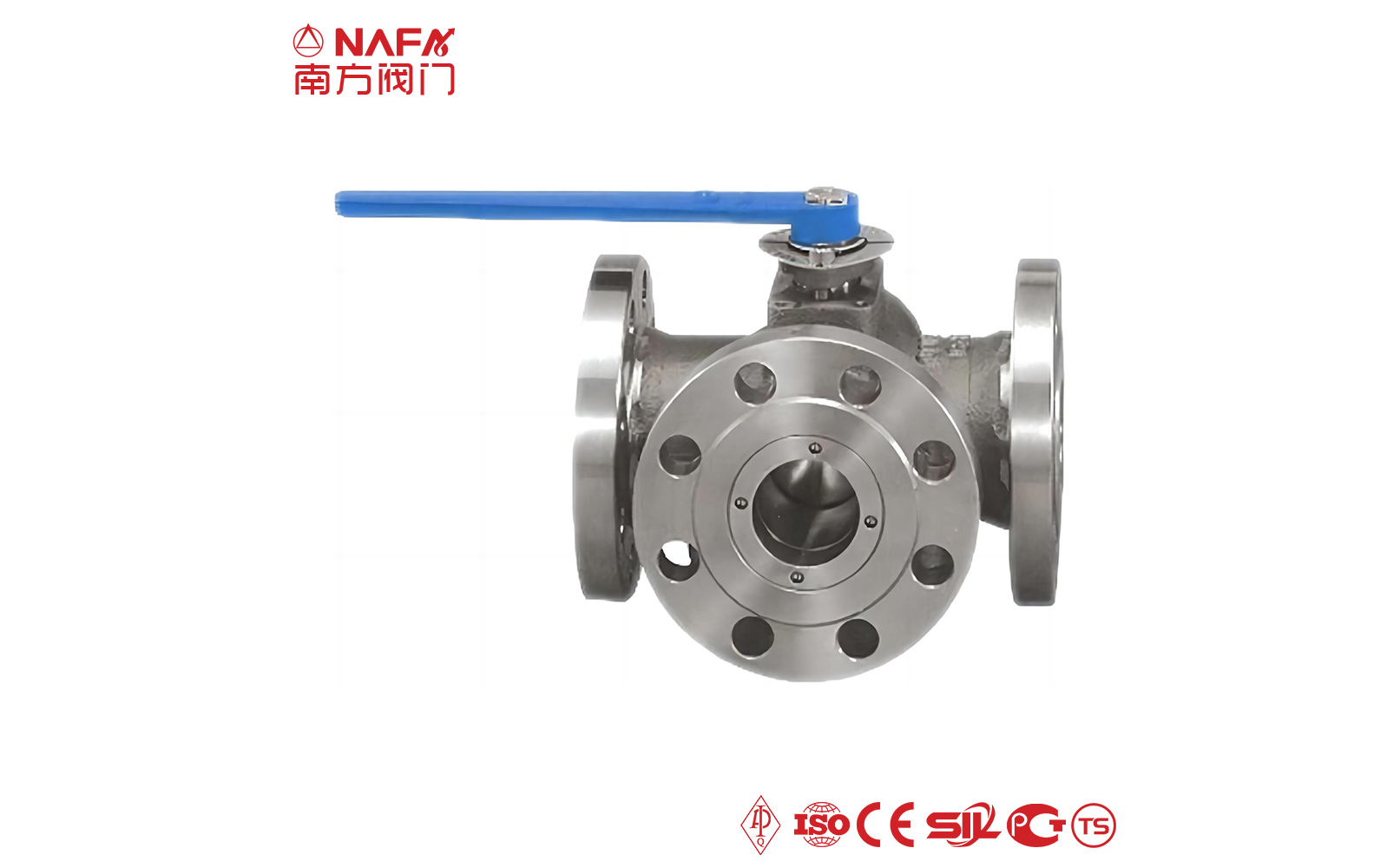

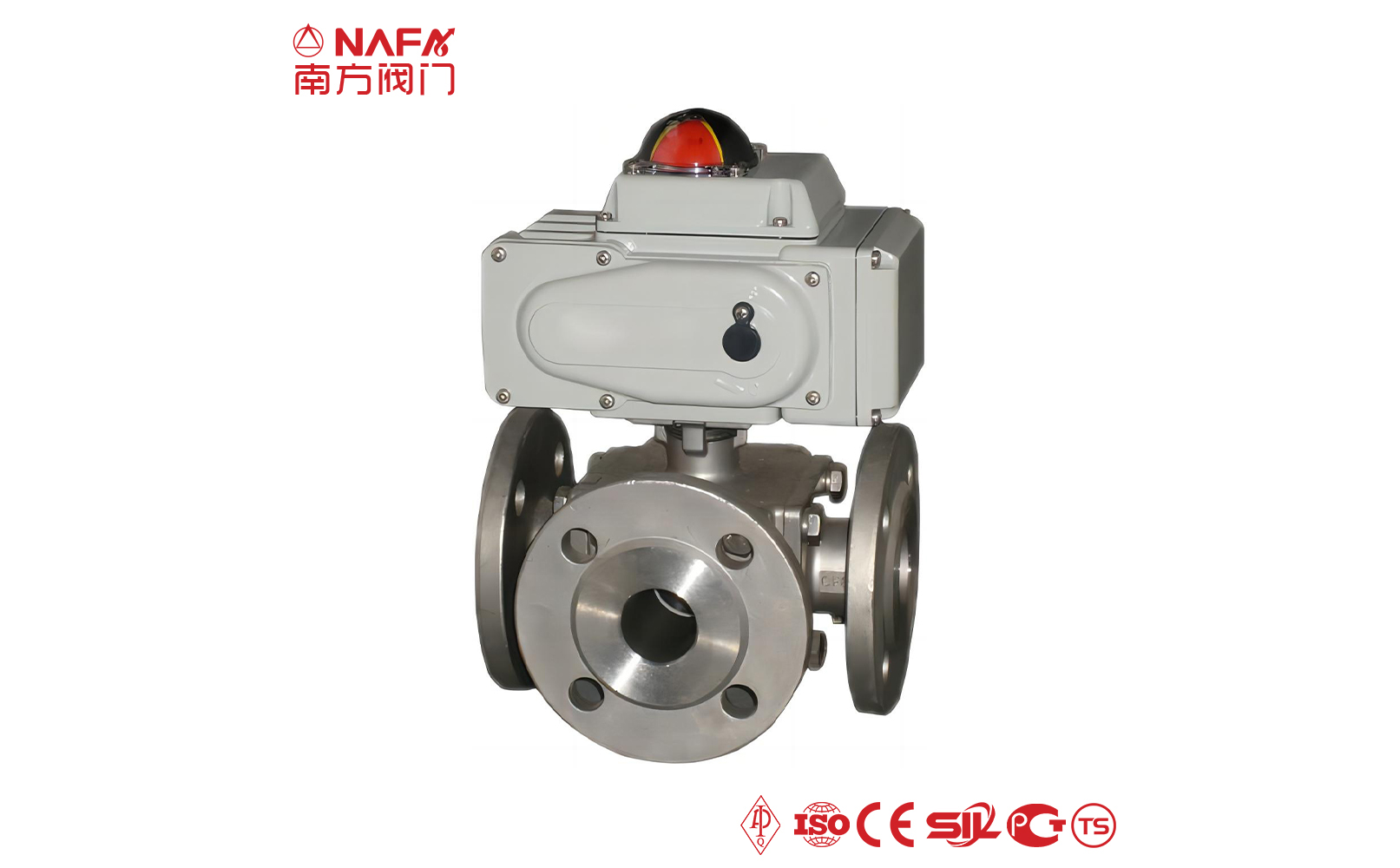

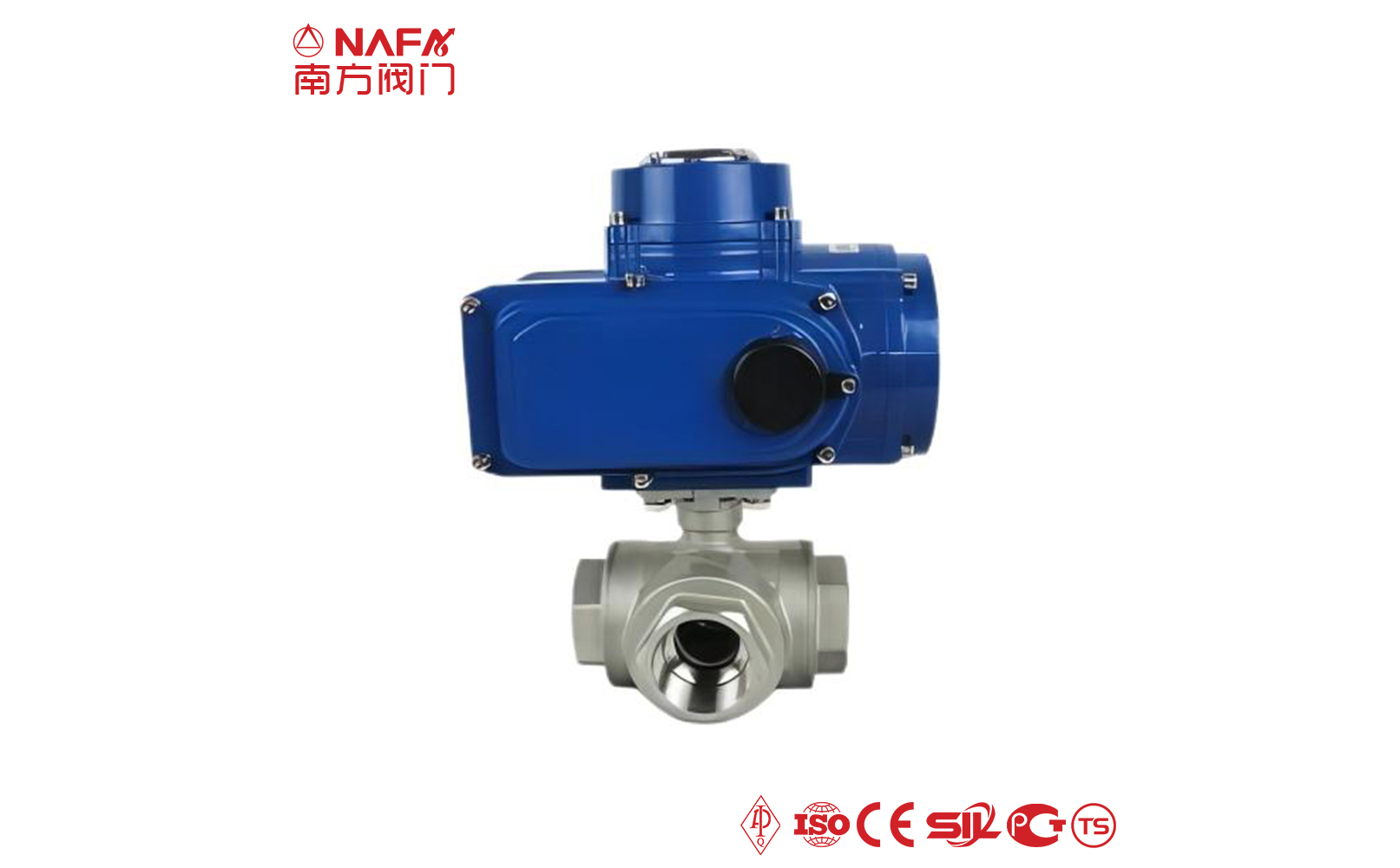

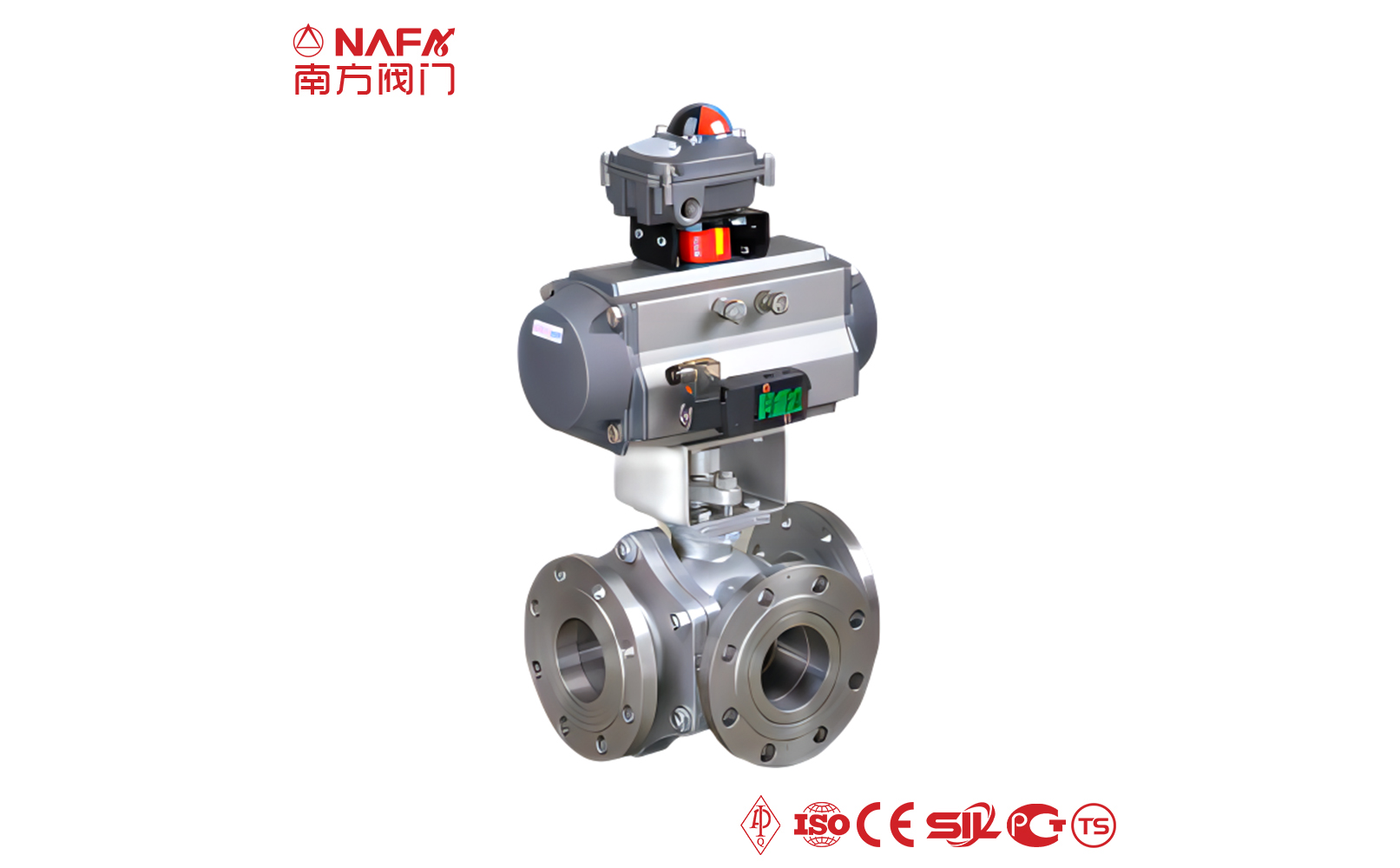

Operation ModeManual, Pneumatic, Electric, Hydraulic, Gear operation


Materials
Valve BodyForgedA105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
CastWCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve StemF6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc
Valve DiscA105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Seat SealingSS, BR, CU, AS, CS, AL, PTFE, NBR, FKM, AI203, etc


Design Standards
Valve BodyAPI 6D, API 608, ASME B16.34, DIN 3357, BS 5351, GOST 9833, JIS B2071, GB/T 12237, etc
FlangeANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12821, DIN 2543-2545, etc
ConnectionANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc
Test StandardsAPI 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc
Why Choose our three-way ball valves
2000+
2000+ Choose Our Products
Our Company Has Launched A One-stop Service
  • 01
    Determine the use environment
    Determine the working conditions of the valve, such as the nature of the medium, the ambient temperature, the flow rate and other factors that affect the valve selection
  • 02
    Select valve type and material
    After determining the working condition, we begin to choose the right valve type. Our engineers will choose the most suitable valve type according to the actual situation to maximize the performance of the valve
  • 03
    Expert verification
    After the valve type and materials are selected, the final production drawing is finalized after repeated inferences and verification by experts
  • 04
    Production
    We use information visualization production, each step of valve production can understand the progress in real time through the online system, each production step has a special inspection and audit
  • 05
    Quality Violence
    After the production of our products, they will go through 15 tests (pressure test, PT, UT, size test, etc.), and finally go through the joint inspection and confirmation of multiple departments before finally leaving the warehouse and entering the packaging link
  • 06
    Super long after-sales
    The valves produced by our company have a 2-year long warranty, providing our customers with lifelong free technical support services
Recommend The Same Type Of Ball Valve
If this type of ball valve is not what you want, you can take a look at our other types of ball valves
