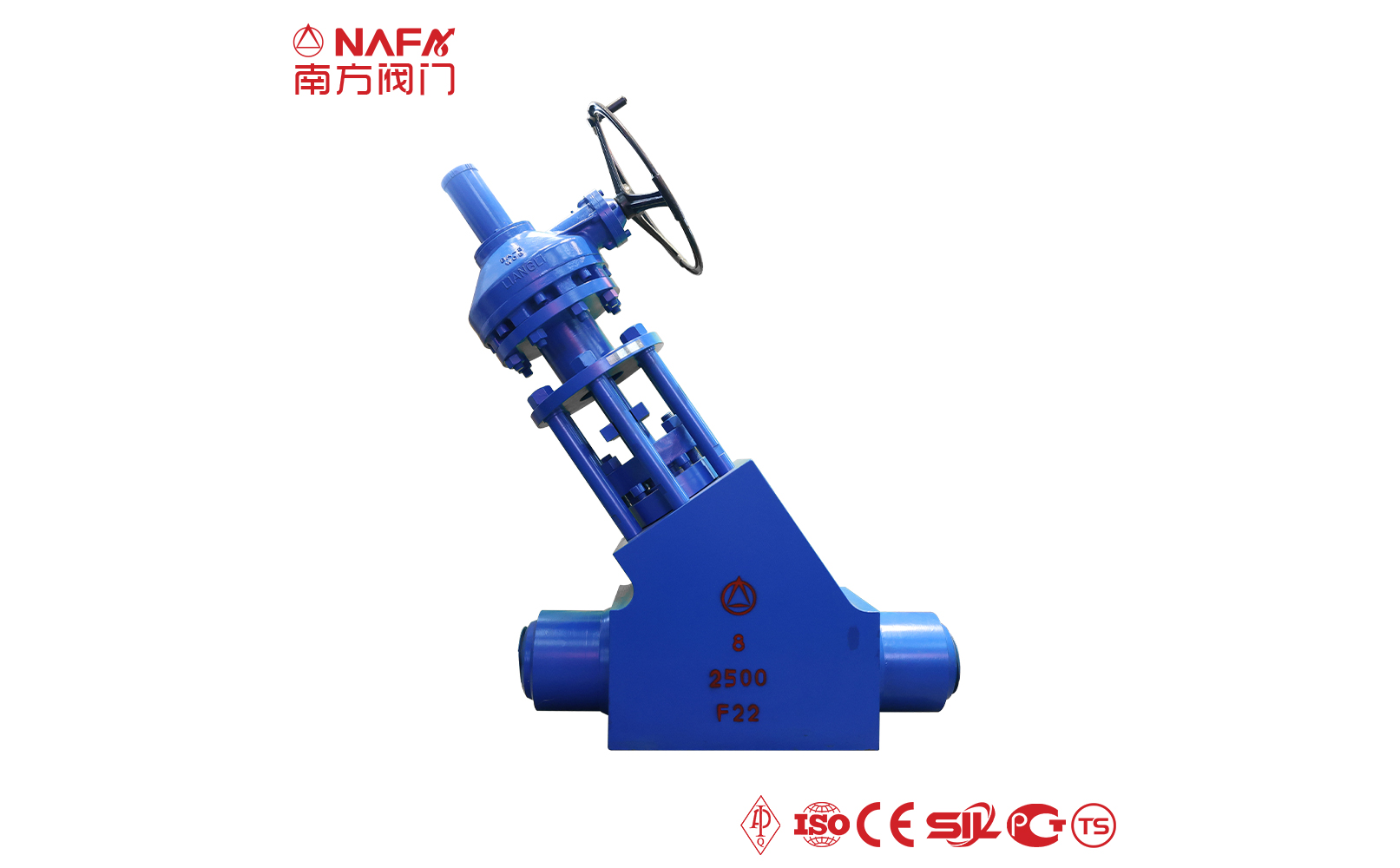

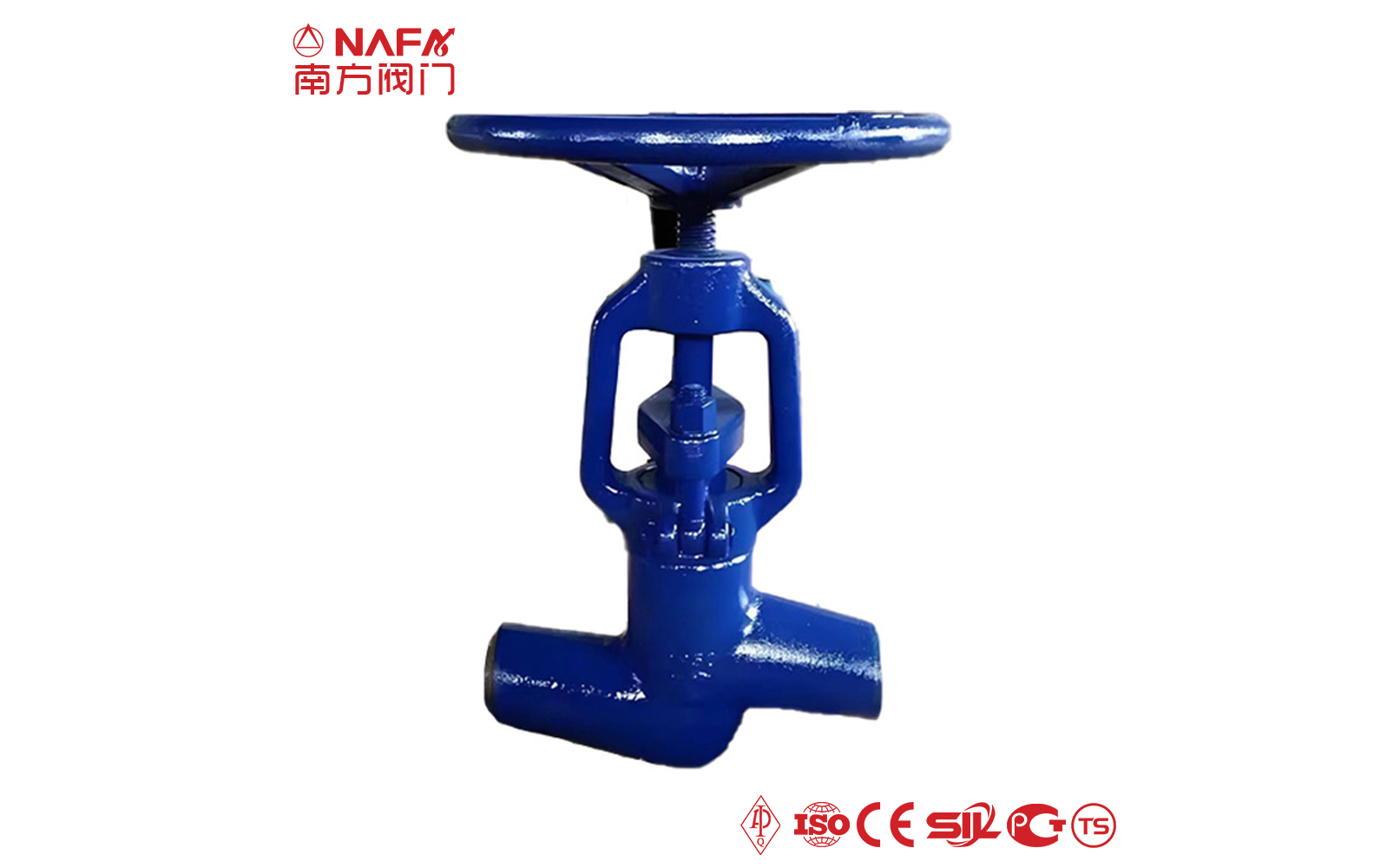

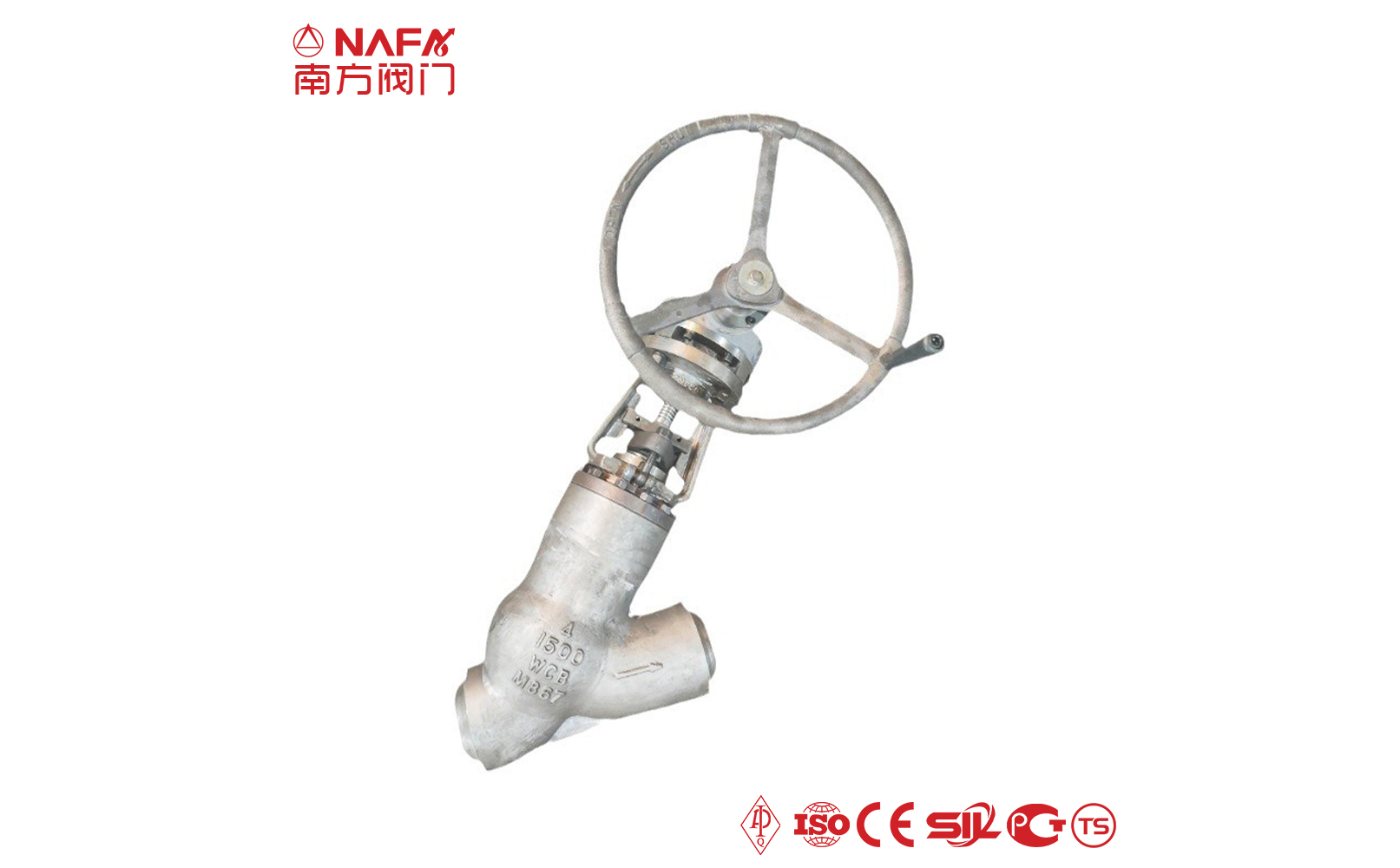

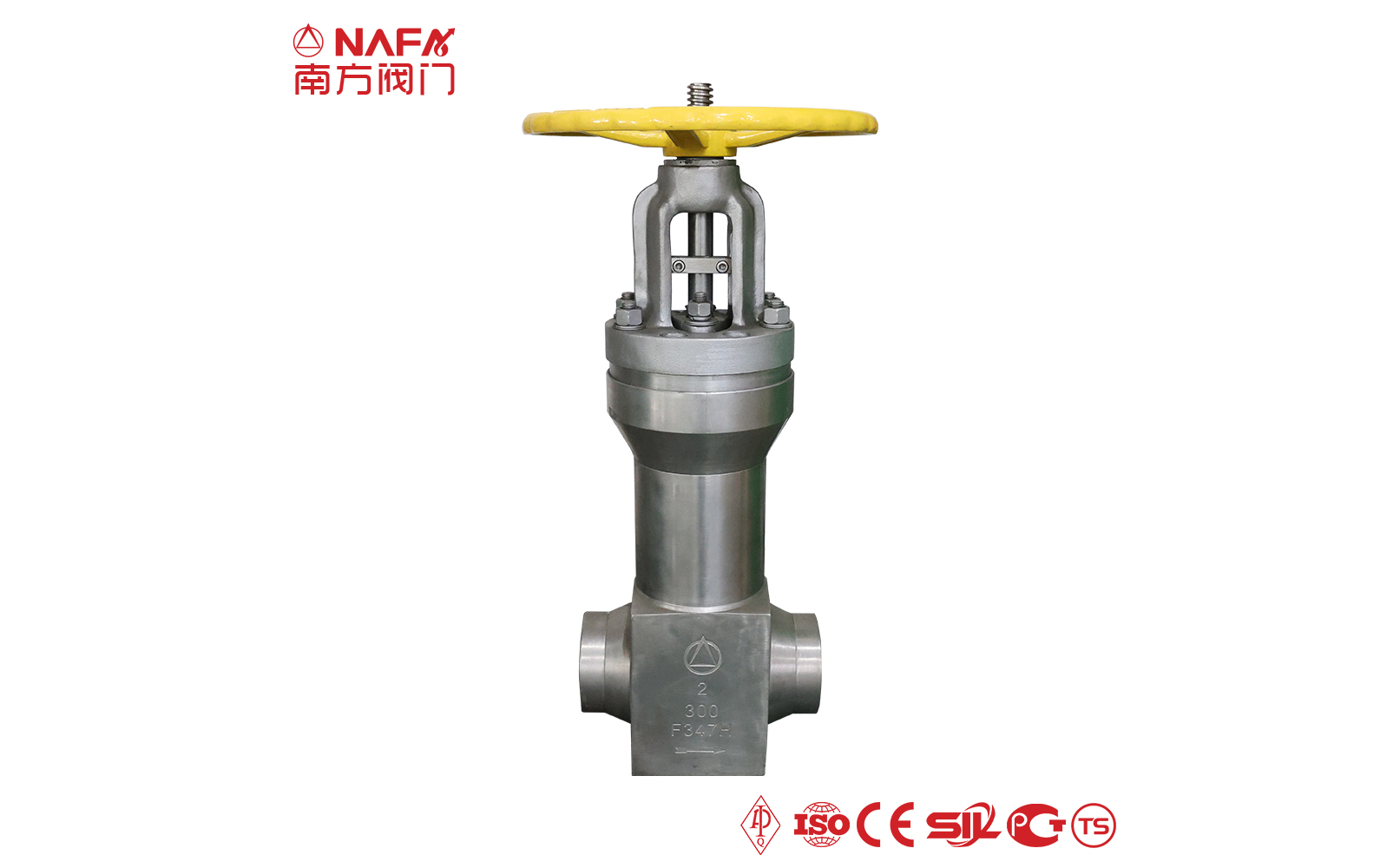

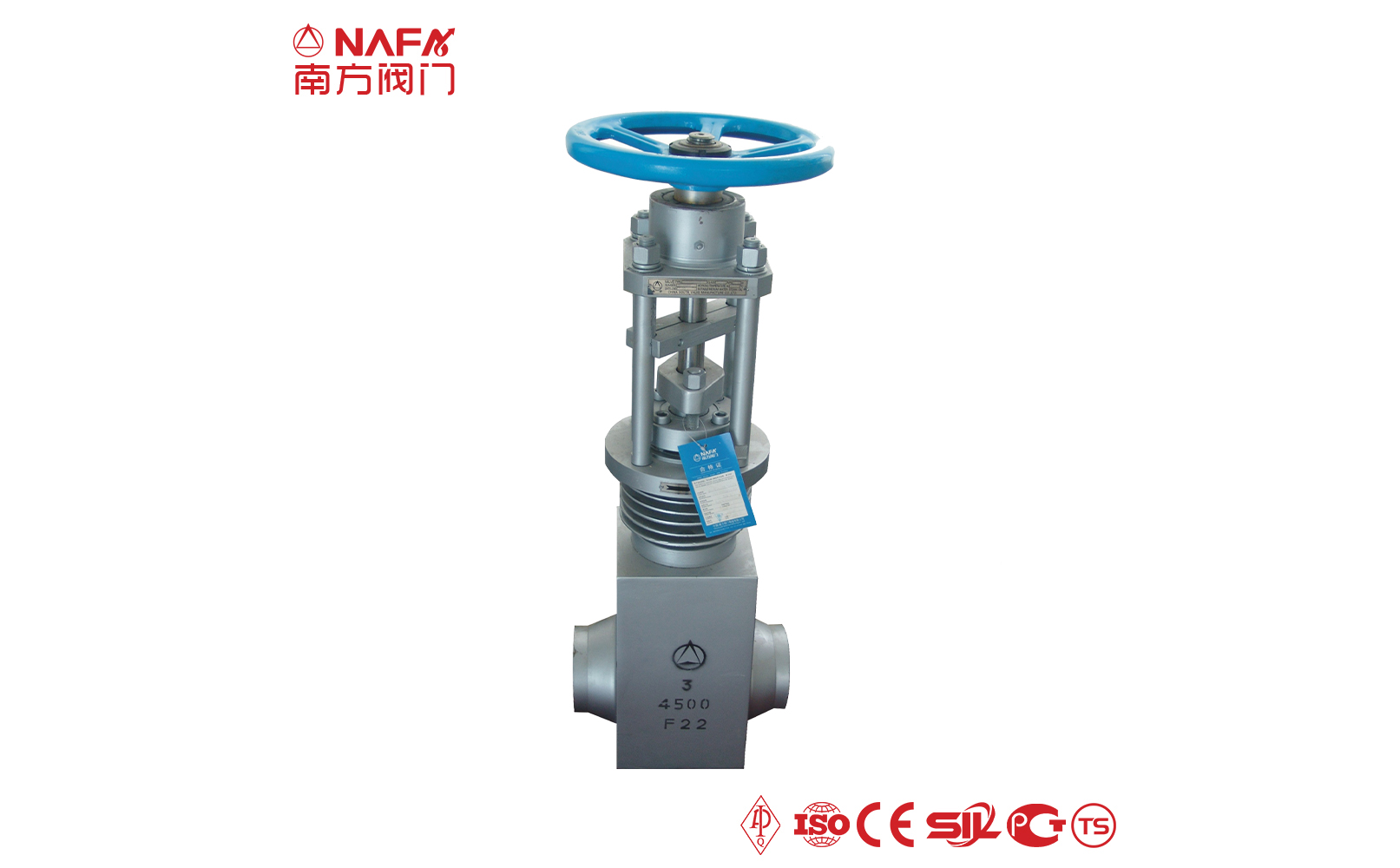

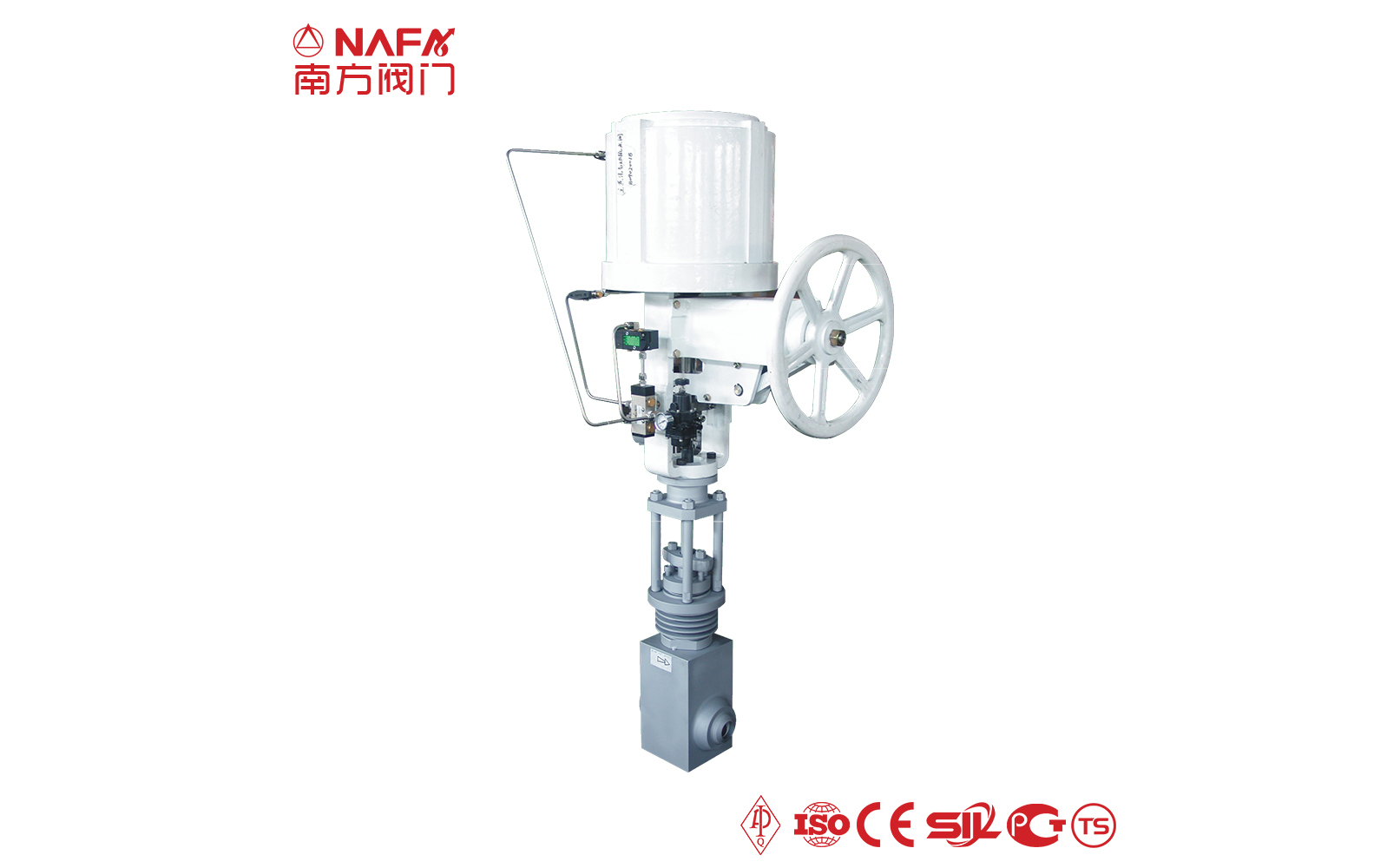

What is Power Station Globe Valve ?
Power station globe valve is one of the power station valves, mainly applied to power station boiler, steam engine and auxiliary equipment. The power station globe valve is suitable for the pipeline of various systems in the thermal power station to cut off or connect the pipeline medium. Its applicable medium is water, steam and other non-corrosive media. The power station globe valve adopts the pressure self-tightening packing seal structure, which has the advantages of sensitive action and good sealing.
Advantages of power station globe valve
  • 01
    It uses pressure self-tightening metal hard seal, has good sealing performance.
  • 02
    The sealing surface of valve seat and valve flap is made of cobalt-based cemented carbide plasma spray welding, which has good wear resistance and abrasion resistance.
  • 03
    The valve stem is treated with anti-corrosive nitriding and has good corrosion resistance.
  • 04
    Valve cover packing box depth is reasonable, packing with corrosion inhibitor, reliable sealing.
  • 05
    Various pipe flange standards and flange sealing surface types can be used to meet various engineering needs and user requirements.
  • 06
    The reverse seal is made of threaded sealing seat or body surfacing welding austenitic stainless steel, reliable sealing, replacement filler can be carried out without stopping, convenient and fast, does not affect the system operation.
Design Standard
  • API
  • ASME
  • ANSI
  • EN
  • DIN
  • GOST
  • GB
  • JIS
Leave Your Contact Details,
Our Team Will Get in Touch With You as Soon as Possible
The characteristics of power station globe valve

Low torque design. The valve stem with special structure design can be easily opened and closed with a small hand handle.

Due to the use of pressure self-tightening packing seal structure, the weight of the whole valve is greatly reduced.

Wedge sealing structure. The valve is sealed by the mechanical force provided by the valve stem, and the ball wedge is pressed to the seat, so that the sealing of the valve is not affected by the change of the pressure difference of the pipeline, and the sealing performance is reliably guaranteed under various working conditions.

Self-cleaning structure of sealing surface. When the ball tilts away from the seat, the fluid in the pipeline passes 360 degrees evenly along the sealing surface of the ball, which not only eliminates the local erosion of the high-speed fluid on the seat, but also washes away the accumulation on the sealing surface to achieve the purpose of self-cleaning.


Technical Parameters
SizeDN15-DN2000, 1/2''-80''
PressurePN6-PN760, Class150-Class4500
Temperature-200°C to 650°C
Connection TypeFlange, Thread, Wafer, Welded
Operation ModeManual, Pneumatic, Electric, Hydraulic, Gear operation


Materials
Valve BodyForgedA105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
CastWCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve StemF6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc.
Valve DiscA105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Seat SealingSS, BR, CU, AS, CS, AL, PTFE, NBR, FKM, AI203, etc.


Materials
Valve BodyForgedA105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
CastWCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve StemF6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc.
Valve DiscA105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Seat SealingSS, BR, CU, AS, CS, AL, PTFE, NBR, FKM, AI203, etc.
