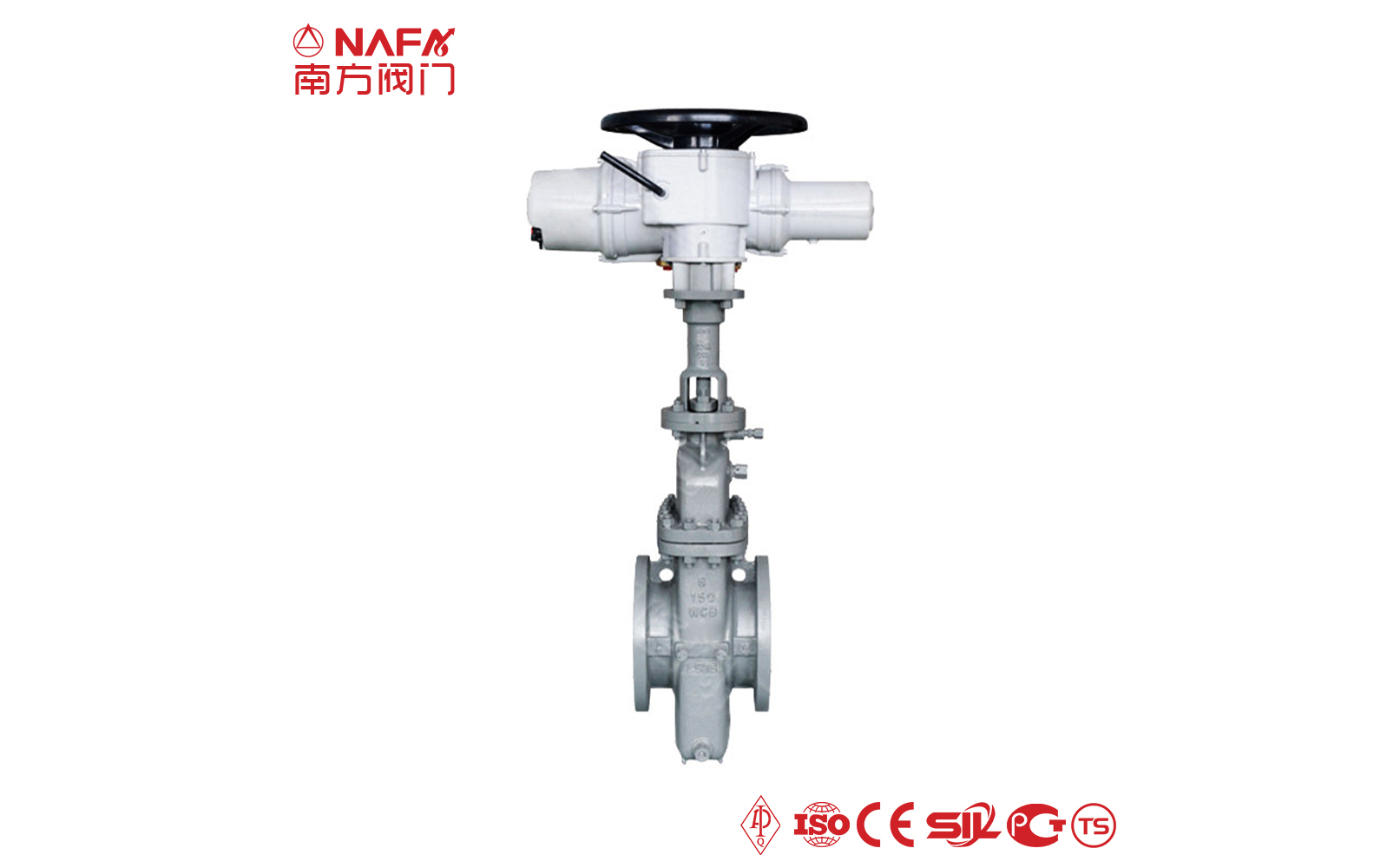

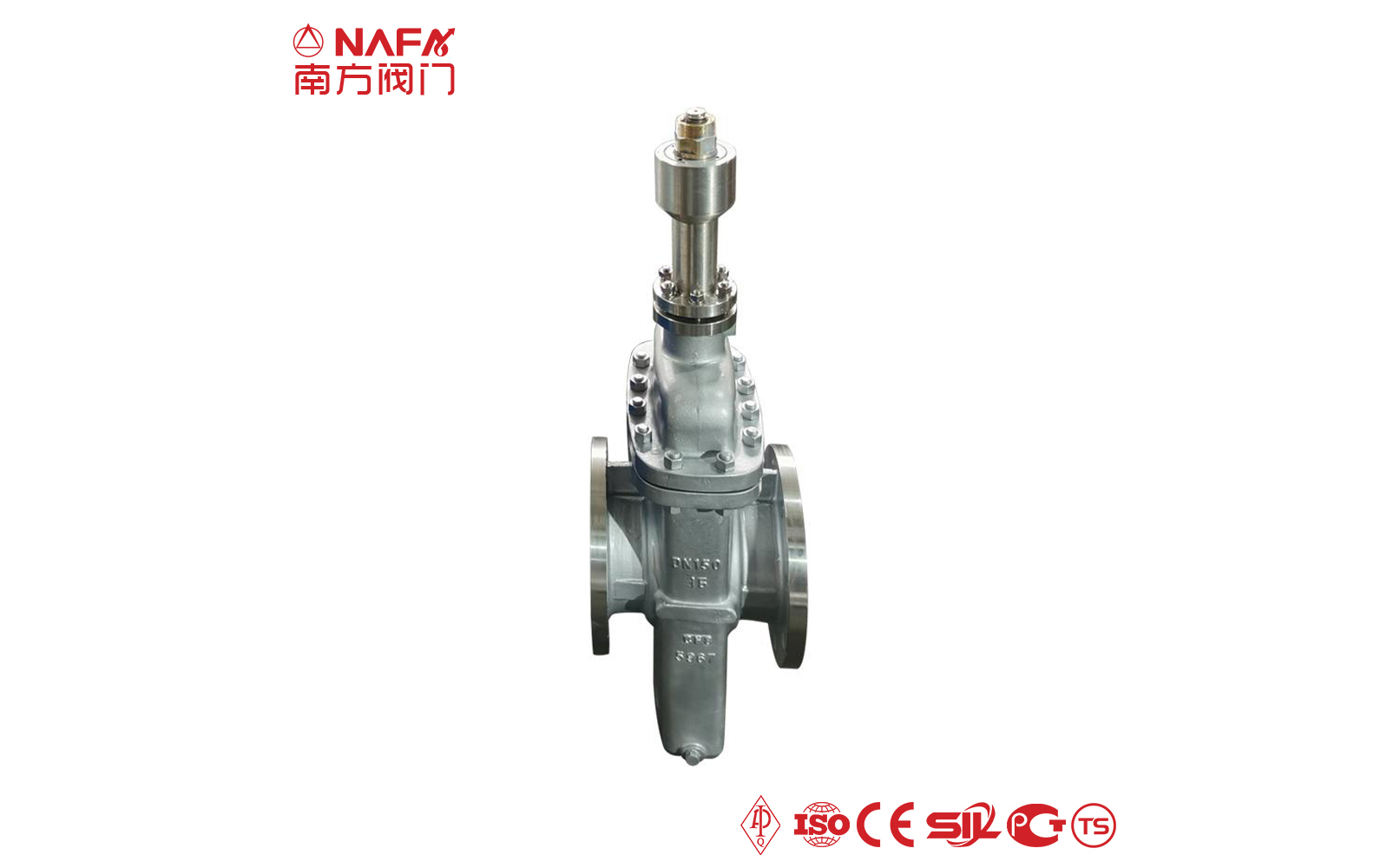

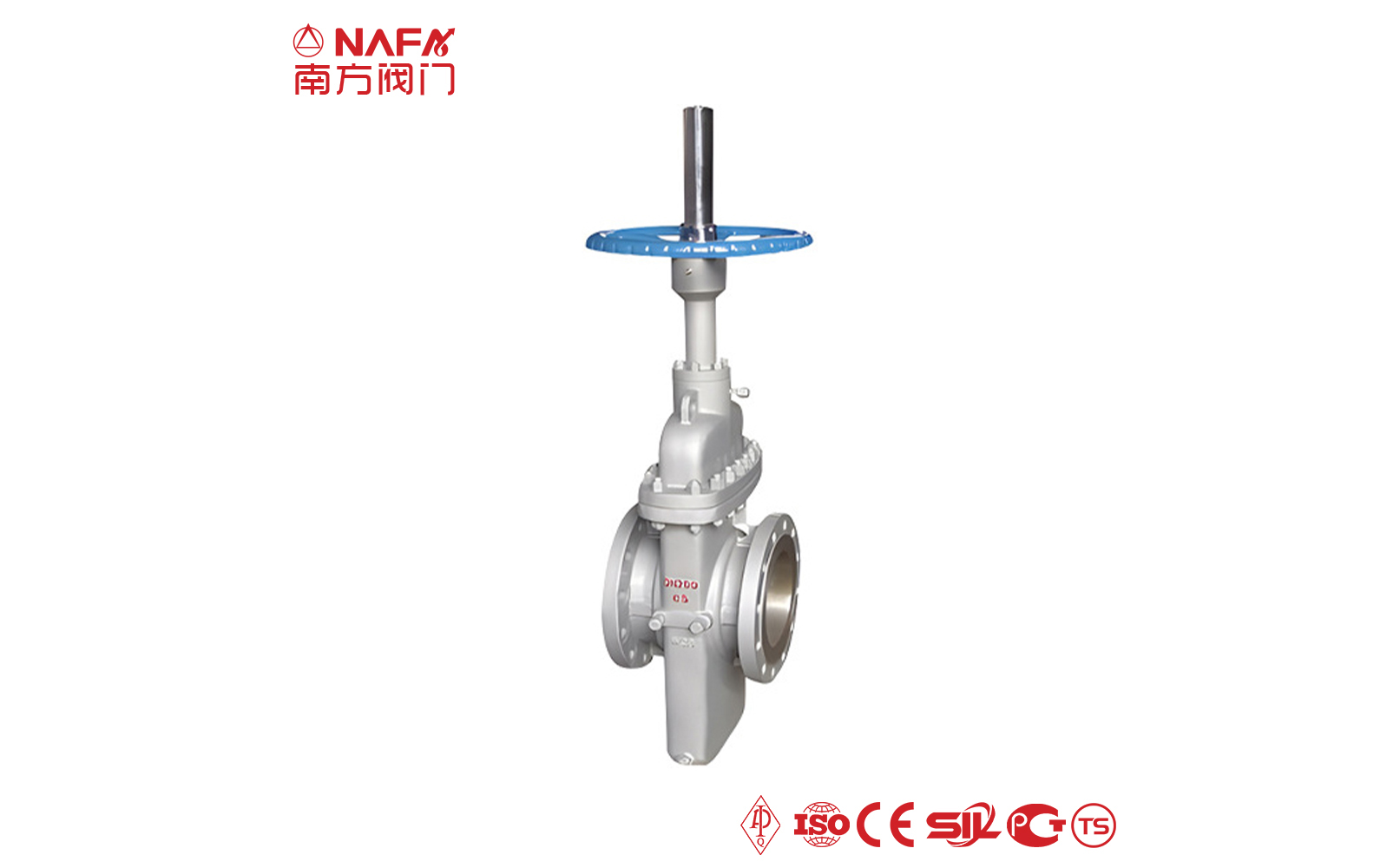

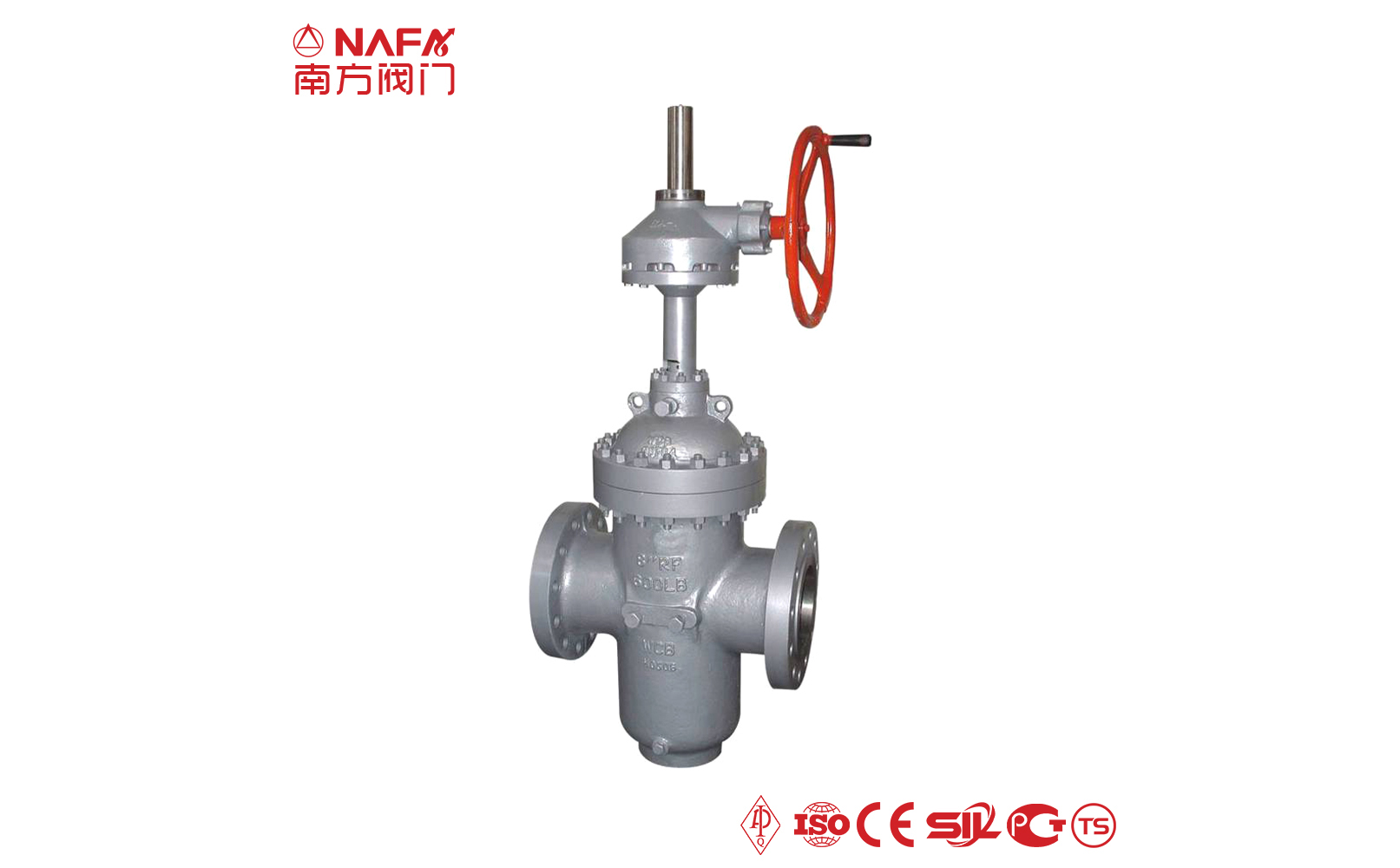

What is Flat Gate Valve ?
The flat gate valve is a sliding valve with parallel gates as the closing part. The closing part can be a single gate or a double gate with a spreading mechanism between them. The pressing force of the gate to the valve seat is controlled by the medium pressure acting on the floating gate or floating valve seat. If it is a double-disc flat gate valve, the spreading mechanism between the two gates can supplement this pressing force.
Advantages of flat gate valve
- 01The metal-sealed valve has a grease injection structure on the outside of the valve body. The grease enters the valve sealing surface through the grease injector and the valve seat, so that the valve achieves zero leakage.
- 02When the flat gate valve is fully opened, the channel is smooth and straight, the flow resistance coefficient is extremely small, there is no pressure loss, and the pipeline can be cleaned by hair balls.
- 03When the flat gate valve is closed, the high pressure in the inner cavity can be automatically unloaded to ensure safe use.
- 04The fully enclosed structure has good protection performance and can adapt to all-weather requirements
- 05The valve is equipped with an indicator rod or observation window to indicate the opening and closing status of the valve.
- 06Due to the double seal, the wearing parts can be replaced without affecting the pipeline operation.
Design Standard
-
API -
ASME -
ANSI -
EN -
DIN -
GOST -
GB -
JIS
Leave Your Contact Details,
Our Team Will Get in Touch With You as Soon as Possible
| The characteristics of flat gate valve |
The seat of the flat gate valve adopts an O-ring seal and a floating valve seat structure with preload force, so that the valve inlet and outlet are sealed in both directions; and the opening and closing torque of this structure is only that of an ordinary valve, which can easily open and close the valve. The valve seat of the flat gate valve adopts stainless steel (or cobalt-chromium-tungsten alloy) inlaid or welded on the sealing surface, which has a double seal to metal and metal to metal, and the sealing surface also removes the gate dirt. The flat gate valve adopts a packing structure with self-sealing ability, which does not need to be adjusted frequently. It is extremely easy to open and close, and the sealing performance is reliable. The stuffing box is equipped with an auxiliary sealing grease injection structure, which has reliable sealing performance and truly achieves zero leakage; it solves the problem that the packing of general valves is easy to leak. The gate of the valve with a diversion hole always matches the sealing surface whether it is fully open or fully closed, and the sealing surface is protected from direct erosion by the medium, thereby extending the service life. |
| Technical Parameters | |
| Size | DN15-DN1500, 1/2''-60'' |
| Pressure | PN10-PN420, Class150-Class2500 |
| Temperature | -200°C to 650°C |
| Connection Type | Flange, Thread, Wafer, Welded |
| Operation Mode | Manual, Pneumatic, Electric, Hydraulic, Gear operation |
| Materials | ||
| Valve Body | Forged | A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc |
| Cast | WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc | |
| Valve Stem | F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc. | |
| Valve Disc | A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc. | |
| Seat Sealing | SS, BR, CU, AS, CS, AL, PTFE, NBR, FKM, AI203, etc. | |
| Design Standards | |
| Valve Body | API 6D, API 608, ASME B16.34, DIN 3357, BS 5351, GOST 9833, JIS B2071, GB/T 12237, etc. |
| Flange | ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12821, DIN 2543-2545, etc. |
| Connection | ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc. |
| Test Standards | API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc. |
